Product Description

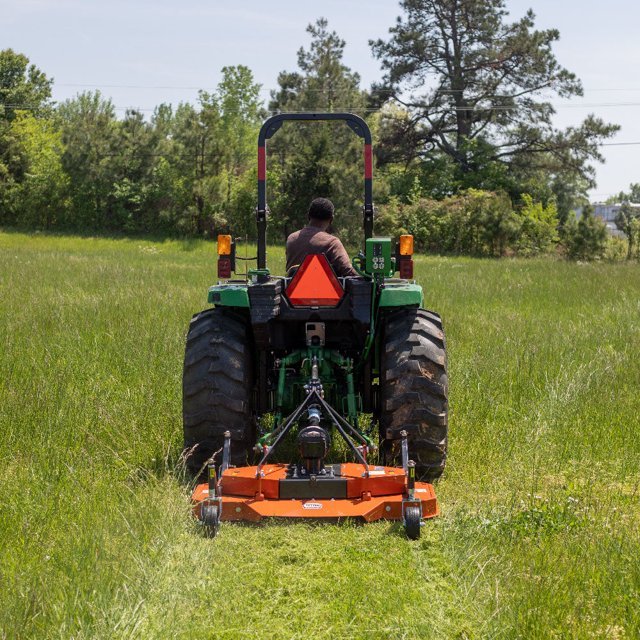

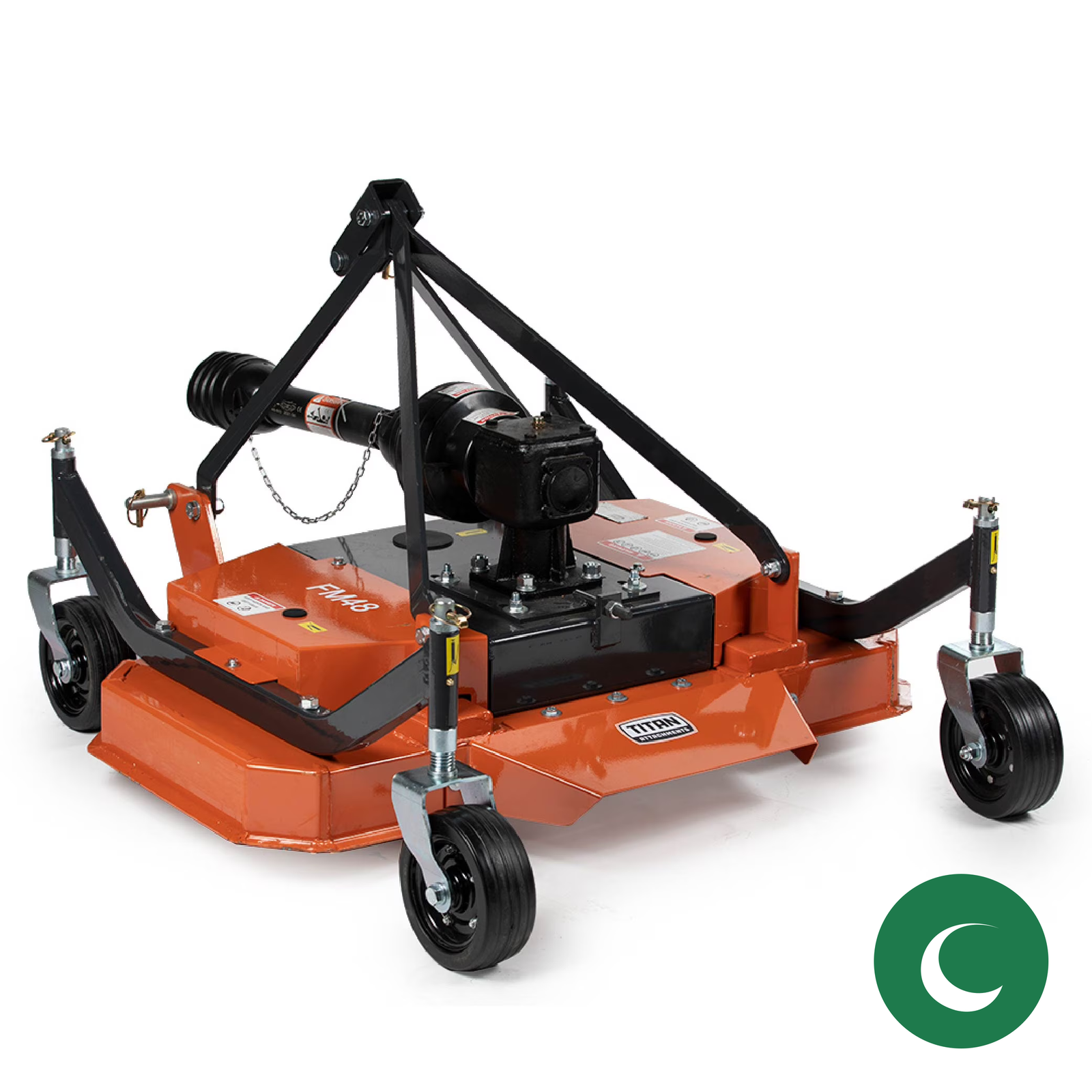

The Titan Attachments 48-Inch 3 Point PTO Finish Mower is a tractor-mounted mowing attachment designed to provide a consistent finished cut across maintained lawns, fields, parks, estates, and other regularly managed grass areas.

This exact 48-inch configuration connects to tractors equipped with a Category 1 three-point hitch and is powered through the tractor’s 540 RPM PTO system. Titan recommends the 48-inch model for tractors in the 18 to 30 HP range.

Its cutting system uses three heat-treated, replaceable blades positioned beneath the steel mower deck. The three-blade configuration provides a 48-inch cutting width, while a wide rear-discharge opening distributes grass clippings behind the mower instead of concentrating discharge to one side.

Cutting height is adjustable from approximately 0.4 to 3.2 inches through the mower’s adjustable wheel-bracket system. This allows the implement to be configured for different maintained-grass heights and mowing requirements.

A floating hitch design allows the mower deck to follow changes in ground contour while the gauge wheels remain in contact with the surface. This helps the deck maintain a more consistent relationship with the ground when mowing across moderately uneven terrain.

Power from the tractor PTO is transferred through the mower’s driveline into a low-noise cast-iron gearbox, which then drives the blade system. Titan specifies a maximum PTO operating speed of 540 RPM for this mower family.

The mower is also designed to work with Titan’s Category 1 Quick Hitch, allowing compatible tractors to connect and disconnect the attachment more conveniently than a conventional individual-link setup.

Constructed from steel and finished with a durable powder coating, the 48-inch mower weighs approximately 430 lb and measures approximately 49 inches wide, 48 inches deep, and 33 inches high.

Key Features

• 48-inch finish-mowing width
• Category 1 three-point tractor connection
• Tractor PTO powered
• 540 RPM maximum PTO speed
• Recommended for 18–30 HP tractors
• Three heat-treated cutting blades
• Replaceable blade design
• Adjustable 0.4–3.2-inch cutting height
• Wide rear grass discharge
• Floating three-point hitch
• Four gauge-wheel layout
• Low-noise cast-iron gearbox
• Heavy steel construction
• Powder-coated finish
• Titan Quick Hitch compatible
• Rear-mounted mowing configuration
• Approx. 430-lb attachment weight

Technical Specifications

Official Titan specifications confirm these values for the currently selected 48-inch model.

Cutting Configuration

48-Inch Cutting Width

The exact selected variant provides:

48 in. Cutting Width

This is Titan’s 4-foot finish-mower configuration.

Cutting Height

Minimum: 0.4 in.
Maximum: 3.2 in.

Cutting height is adjusted through the wheel-bracket system.

Blade Configuration

Three-Blade Cutting System

The mower uses:

3 replaceable heat-treated blades

Titan offers dedicated replacement blade sets for each mower width, including separate 4-ft, 5-ft, and 6-ft blade sets.

Do not use 60- or 72-inch replacement blades on this exact 48-inch configuration.

PTO Configuration

540 RPM PTO

The mower is mechanically powered through the tractor PTO.

Maximum PTO Speed: 540 RPM

The current Titan product page also lists a compatible 31.5-inch PTO shaft with shear bolt among replacement components.

Tractor Compatibility

Category 1 Three-Point Hitch

The mower is designed for:

Category 1 tractors

with a compatible:

3 Point Hitch

Recommended Tractor Power

For the 48-inch version:

18–30 HP

Tractor compatibility should also be checked against the tractor manufacturer’s three-point lift capacity, PTO specification, dimensions, and implement requirements.

Floating Hitch Configuration

The mower incorporates a:

Floating Hitch

The floating arrangement allows the attachment to follow ground contours rather than remaining completely rigid relative to the tractor.

This is particularly useful for finish mowing where a consistent grass height is desired.

Rear Discharge Configuration

Wide Rear Discharge

Grass clippings are discharged across the rear of the mower.

Compared with a side-discharge arrangement, the rear-discharge layout spreads clippings behind the attachment and helps reduce concentration of discharged material along one side of the uncut area.

Gearbox Configuration

Low-Noise Cast-Iron Gearbox

Titan equips the finish mower with a:

Cast-Iron PTO Gearbox

described by the manufacturer as a low-noise design.

The gearbox transfers PTO input into the belt and blade drive system.

Gauge Wheel & Height Configuration

The mower uses adjustable gauge wheels to:

• Support the deck
• Maintain cutting height
• Follow ground contours
• Reduce direct deck contact with the surface

The wheel-bracket position is used to set cutting height within the published 0.4–3.2-inch range.

Dimensions

Overall Width: 49 in.
Overall Depth: 48 in.
Overall Height: 33 in.
Cutting Width: 48 in.
Weight: 430 lb

These values apply specifically to the current 48-inch variant.

Construction

Steel Deck & Frame

The mower is constructed from steel and uses a powder-coated exterior finish.

Official Titan specifications list:

Material: Steel
Finish: Powder-Coated Charcoal / Orange.

Quick Hitch Compatibility

The finish mower is:

Titan Category 1 Quick Hitch Compatible

The quick hitch is a separate tractor accessory and should not automatically be listed as included with the mower unless your exact package contains one.

What’s Included

The standard attachment configuration consists of:

• 1 × Titan Attachments 48″ Finish Mower
• Category 1 three-point mounting assembly
• Floating hitch structure
• PTO driveline assembly
• Cast-iron gearbox
• Three cutting blades
• Belt-drive system
• Gauge-wheel assemblies
• Rear-discharge mower deck
• Factory hardware required for the attachment assembly

Not Included Unless Bundled

Do not automatically advertise the following as included:

• Tractor
• Category 1 quick hitch
• Replacement blade set
• Replacement belt
• Replacement gearbox
• Additional PTO shaft
• Additional shear bolts
• Other tractor accessories

Titan lists several of these as replacement or separately available parts.

Compatible Replacement Parts

Titan currently identifies dedicated replacement components including:

4 FT Finish Mower Blades: Part 191582
4 FT Finish Mower Belt: Part 191611
31.5″ PTO Shaft with Shear Bolt: Part 191597
Replacement Gearbox: Part 191727.

Available Size Variants

The current Titan product family is offered in:

48-Inch

4 FT Cutting Width

60-Inch

5 FT Cutting Width

72-Inch

6 FT Cutting Width

Titan also currently displays Orange and Green finish options across these sizes.

These sizes should be created as separate variants in your store because tractor-power requirements, overall dimensions, weight, blades, belts, price, and other specifications can differ.

Important Variant Notes

This Listing Is for the 48-Inch Model

Use:

48″ Cutting Width

Do not accidentally use specifications from the:

• 60″ / 5 FT variant
• 72″ / 6 FT variant

Correct Tractor Range

For this exact 48″ version:

18–30 HP

Correct PTO Speed

540 RPM

Correct Blade Count

3

Correct Cutting Height

0.4–3.2 in.

Correct Product Weight

430 lb

Correct Overall Width

49 in.

Current Retail Reference

As of August 10, 2026, Titan’s official U.S. storefront shows the selected:

48″ Orange 3 Point Finish Mower

at:

$1,299.97

with a displayed reference price of $2,099.99. At the time checked, the product page showed a backorder purchase state for the selected configuration.

For Google Merchant Center, use the actual price and availability displayed on your own product landing page and checkout rather than copying Titan’s temporary sale or stock state.
