Product Description

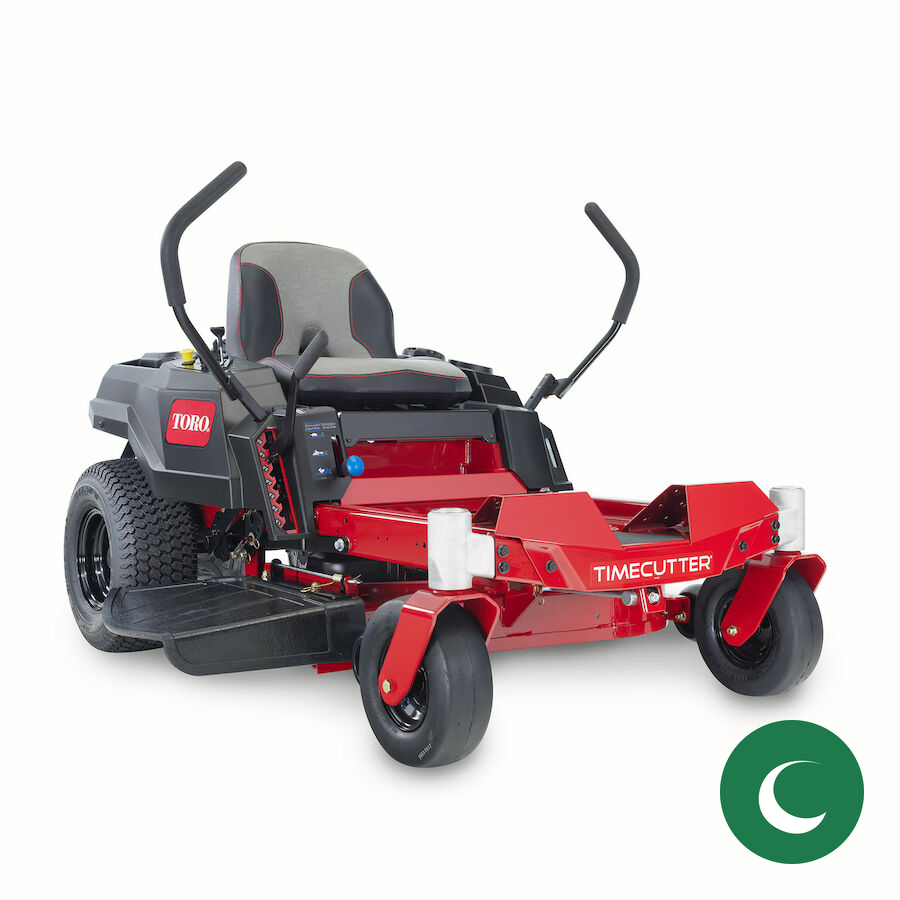

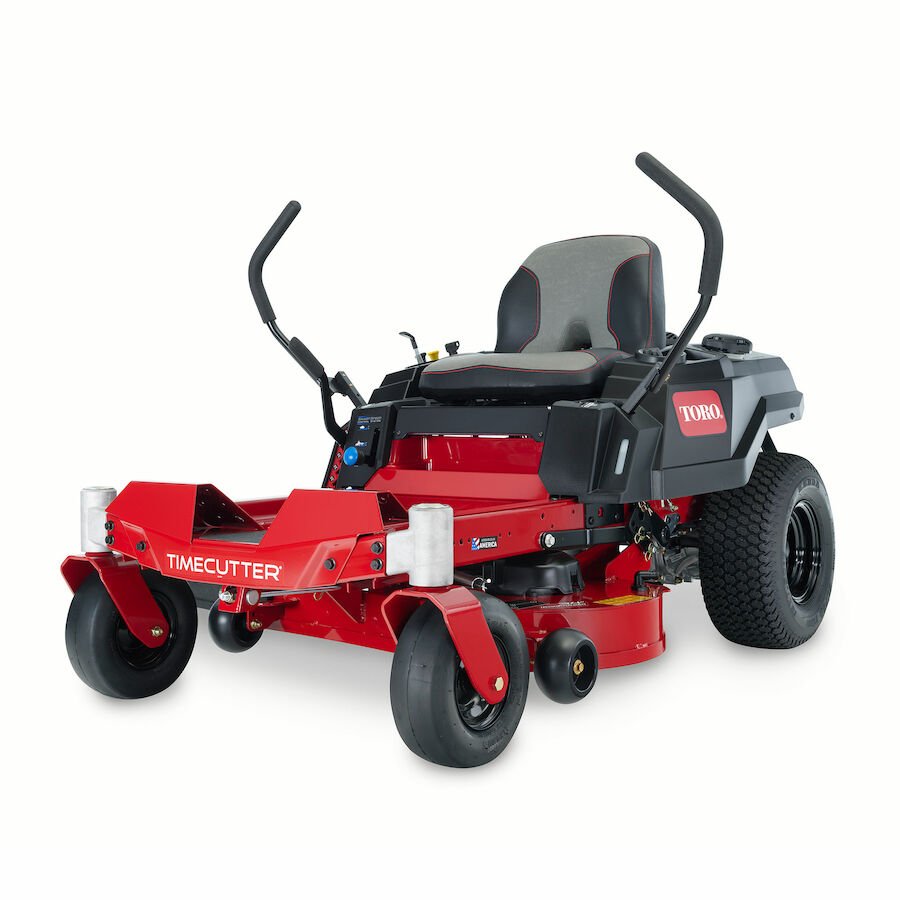

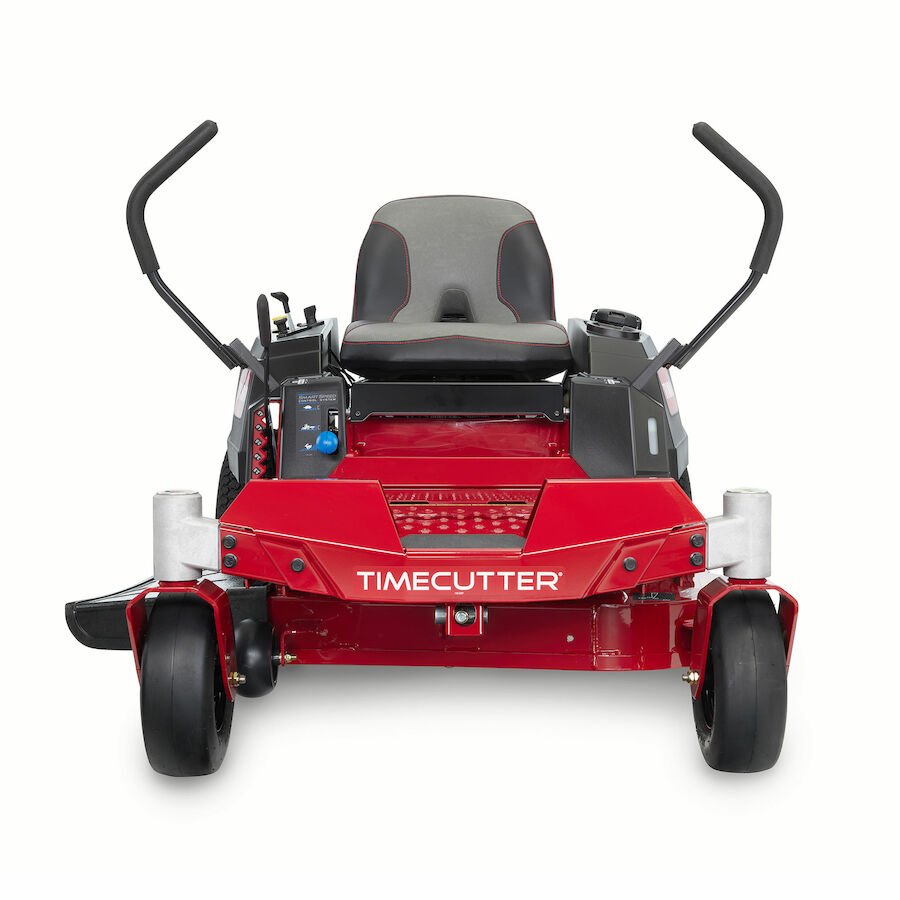

The Toro 34-Inch TimeCutter Zero-Turn Riding Lawn Mower combines the maneuverability of a zero-turn platform with a compact 34-inch cutting deck designed for residential properties where storage space, gates, landscaping, and tighter mowing areas need to be considered.

The current Model 77301 is powered by a 22 HP Briggs & Stratton V-Twin gasoline engine with a published 724cc displacement. Its twin-cylinder engine configuration is paired with a dual hydrostatic drive system, allowing the rear drive wheels to be independently controlled through the mower’s dual steering levers.

A key feature of the mower is its 34-inch IronForged® fabricated deck. The current 77301 configuration uses heavy fabricated steel construction and a two-blade cutting system. Its relatively narrow deck makes the mower better suited to spaces where wider 42-, 50-, or 54-inch zero-turn machines may have difficulty passing through gates or between landscape features.

The cutting-height system provides a range of approximately 1.5 to 4.5 inches, allowing the deck to be configured for different maintained-grass heights.

Toro’s Smart Speed® Control System provides three selectable ground-speed ranges:

• Trim
• Tow
• Mow

This allows ground speed to be matched to the mower’s current task while maintaining blade operation. Toro’s official operator manual confirms these three Smart Speed ranges for Model 77301.

Maximum forward travel speed is approximately 7 MPH, while the dual-hydrostatic layout provides the independent wheel control required for zero-turn steering.

The mower also incorporates a step-through front-end layout, making entry and exit more direct than designs that require the operator to step around a larger deck. An under-seat storage cubby and built-in cup holder provide additional storage and convenience.

Toro equips the TimeCutter with a padded high-back operator seat and wrap-around motion-control levers. The compact chassis is approximately 75 inches long, while Toro’s current operator manual lists the 34-inch 77301 at approximately 496 lb.

With its compact overall configuration and zero-turn steering, the 34-inch TimeCutter is intended primarily for maintained residential lawns. Toro’s product information positions the 34-inch platform for residential mowing applications of up to approximately 2 acres, depending on terrain, obstacles, grass conditions, and mowing pattern.

Key Features

• Current Toro TimeCutter Model 77301
• Compact 34-inch cutting width
• 22 HP Briggs & Stratton V-Twin engine
• 724cc engine displacement
• Electric start
• 34-inch IronForged® fabricated deck
• Heavy-gauge steel deck construction
• Two-blade cutting system
• Side-discharge configuration
• Dual hydrostatic transmission
• Rear-wheel drive
• True zero-turn steering
• Smart Speed® Control System
• Trim, Tow, and Mow speed ranges
• Up to 7 MPH forward speed
• 1.5–4.5-inch cutting-height range
• 3-gallon fuel tank
• Electric PTO blade engagement
• Step-through front end
• Under-seat storage cubby
• High-back seat
• Built-in cup holder
• Standard hitch bracket
• Two anti-scalp wheels
• Compact approximately 75-inch overall length
• Approximately 496-lb mower weight
• Designed for maintained residential lawns

Technical Specifications

Toro’s official Model 77301 manual confirms the 34-inch cutting width, 75-inch overall length, approximately 39-inch height and 496-lb weight.

Engine Configuration

22 HP Briggs & Stratton V-Twin

The current Toro 77301 uses:

Engine Brand: Briggs & Stratton
Configuration: V-Twin
Engine Power: 22 HP
Engine Displacement: 724cc
Cooling: Air-Cooled
Starting System: Electric

The current 77301 should not be confused with the older discontinued Model 75734, which used a 22 HP Kohler 725cc engine.

Important Variant Accuracy

For Model 77301, use:

22 HP Briggs & Stratton / 724cc

Do not use:

22 HP Kohler / 725cc

That specification belongs to discontinued Model 75734.

34-Inch IronForged® Deck Configuration

The mower uses a:

34 in. / 86 cm IronForged® Fabricated Deck

with:

Two Cutting Blades

and:

Side Discharge

The compact cutting width allows the mower to work in areas where larger zero-turn decks can be less convenient.

Deck Construction

The current 77301 configuration is published with a heavy fabricated IronForged deck.

Deck Material: Steel
Deck Construction: Fabricated
Deck Size: 34 inches
Anti-Scalp Wheels: 2

The fabricated deck should not be confused with stamped residential mower decks.

Cutting Height Configuration

Cutting Range

1.5–4.5 Inches

Adjustment

7 Positions

This provides multiple selectable deck heights for maintained residential turf.

Smart Speed® Configuration

Toro’s Smart Speed Control System provides:

Trim

Lower ground-speed range.

Tow

Medium ground-speed range.

Mow

Higher normal-mowing range.

The official Model 77301 operator manual identifies all three ranges.

Transmission Configuration

Dual Hydrostatic

The current TimeCutter uses a:

Dual Hydrostatic Drive System

Each rear wheel can be independently controlled through the two motion-control levers, providing zero-turn steering.

Drive Type: Rear-Wheel Drive

Maximum Forward Speed: Up to 7 MPH.

Tire Configuration

Front

11 in. × 4 in.

Rear

18 in. × 6 in.

The front caster-wheel configuration provides the free-pivoting front geometry required for zero-turn maneuvering.

Fuel Configuration

Fuel Type: Gasoline

Fuel Capacity: 3 Gallons

A fuel-presence window is incorporated into the mower, allowing the operator to visually check available fuel. Toro’s official 77301 manual confirms the fuel-window feature.

Operator Configuration

Standard operator features include:

• High-back seat
• Dual wrap-around motion-control levers
• Step-through front end
• Under-seat storage cubby
• Built-in cup holder
• Electric blade engagement
• Key-start ignition
• Smart Speed selector

Dimensions

Cutting Width

34 in. / 86 cm

Overall Length

75 in. / 191 cm

Overall Height

39 in. / 99 cm

Width with Discharge Deflector Down

45 in. / 114 cm

Width with Deflector Raised

41 in. / 104 cm

Product Weight

496 lb / 225 kg

These dimensions come directly from Toro’s current operator manual for Model 77301.

Recommended Property Type

Toro positions the compact TimeCutter for:

• Maintained residential lawns
• Properties with landscaping obstacles
• Areas with narrower gates or passages
• Residential yards where compact mower storage matters

The 34-inch TimeCutter is commonly positioned for lawns of up to approximately 2 acres, depending on mowing and site conditions.

What’s Included

The standard mower configuration includes:

• 1 × Toro TimeCutter Model 77301 Zero-Turn Mower
• 22 HP Briggs & Stratton V-Twin engine
• 34-inch IronForged® mower deck
• Two mower blades
• Side-discharge chute
• Dual hydrostatic drive system
• Front caster wheels
• Rear drive wheels
• Operator seat
• Dual steering levers
• Standard hitch bracket
• Cup holder
• Under-seat storage compartment
• Factory-installed control and safety systems

Optional Accessories – Not Included Unless Bundled

Compatible accessories may include:

• Bagger / grass collection system
• Mulching equipment
• Armrests
• Hour meter
• Foot-operated deck-height kit
• Cover
• Other Toro-approved TimeCutter accessories

Toro specifically lists the hour meter and foot-operated height-of-cut system as optional on related 34-inch TimeCutter configurations rather than universal base equipment.

Only include accessories in your store’s “What’s Included” section when your exact package actually contains them.

Warranty Information

Toro’s previous 34-inch TimeCutter documentation identifies a 3-Year Unlimited-Hour Residential Warranty, while specific engine coverage and the current 77301 warranty terms can vary by sales configuration and model year.
