Product Description

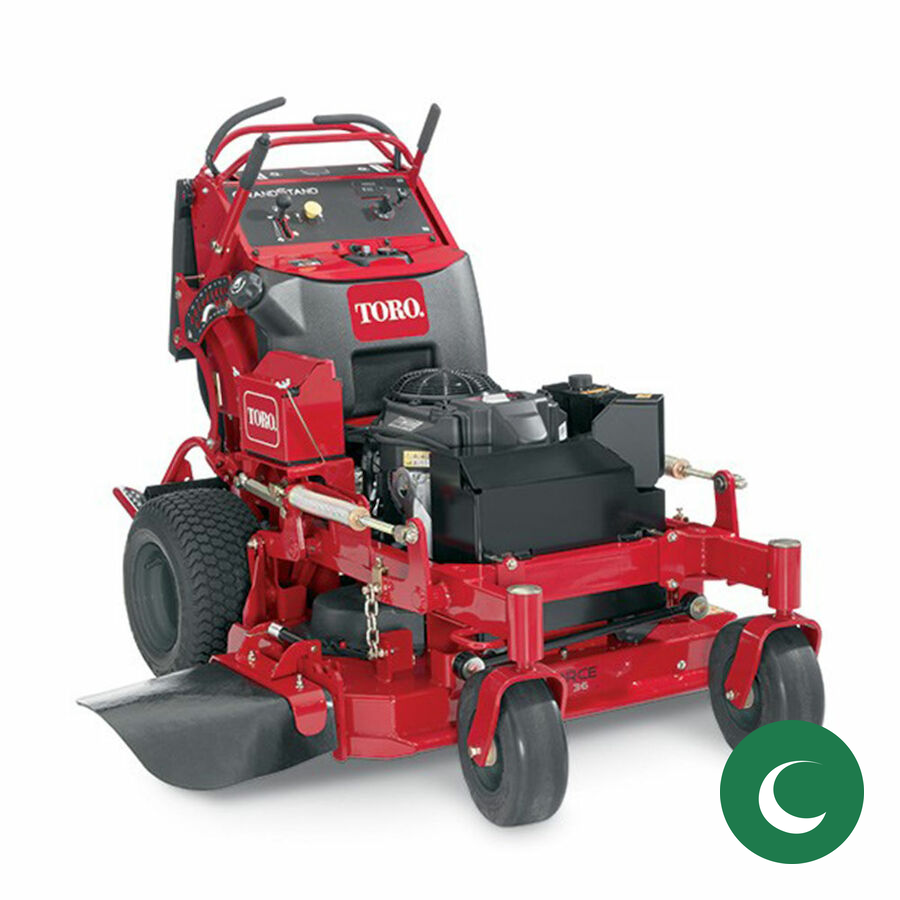

The Toro GrandStand 36-Inch Model 74534 is a commercial stand-on mower designed to combine the maneuverability and visibility of a walk-behind mower with the productivity and travel speed of a zero-turn platform.

Power comes from a Kawasaki FS541V gasoline engine rated by Toro at 15 HP / 11 kW. Despite the “FS541V” engine designation and a conflicting “541cc” label that appears in portions of Toro’s current page heading, Toro’s formal technical specifications identify the actual engine displacement as 603cc.

The mower uses Toro’s commercial 36-inch TURBO FORCE cutting deck, constructed from heavy 7-gauge steel and reinforced at the front with a bull-nose bumper. Three heat-treated cutting blades provide coverage across the full 36-inch deck.

A major feature of the GrandStand platform is its foldable operator platform. With the platform lowered, the machine functions as a stand-on mower. Folding the platform upward allows it to be operated in a walk-behind configuration, giving the machine greater flexibility in confined areas and when maneuvering around landscaping.

The operator platform incorporates suspension designed to isolate the operator from some of the vibration and impacts encountered over uneven turf. Toro refers to this as a fatigue-reducing suspended platform arrangement.

Propulsion is handled through a commercial hydrostatic drive system using twin hydraulic pumps and separate wheel motors. Twin-lever steering gives the operator independent control of the drive wheels and the maneuverability expected from a zero-turn-style commercial mower.

Toro lists a maximum forward ground speed of approximately 8 MPH, allowing the GrandStand to travel quickly between cutting areas and maintain commercial mowing productivity.

The 36-inch TURBO FORCE deck provides cutting heights from approximately 1 to 5 inches, giving operators a broad range of maintained grass heights. An adjustable discharge baffle allows airflow and clipping discharge characteristics to be adapted to different mowing conditions.

A large 7.8-gallon fuel tank helps extend operating time between refueling stops, while the standard digital hour meter supports service and maintenance scheduling.

The compact 36-inch deck makes Model 74534 particularly useful for commercial properties containing gates, narrow access points, landscaped areas and other spaces where larger stand-on or zero-turn machines may be difficult to maneuver.

Key Features

• Exact Toro Model 74534
• Toro GrandStand commercial platform
• 36-inch / 91 cm cutting width
• Kawasaki FS541V engine
• 603cc actual engine displacement
• 15 HP manufacturer rating
• 4-cycle gasoline engine
• Electric starting
• Commercial hydrostatic drive
• Twin hydraulic pumps
• Independent wheel motors
• Rear-wheel traction
• Twin-lever steering
• Up to 8 MPH forward speed
• 7-gauge TURBO FORCE deck
• Reinforced bull-nose front deck bumper
• Three commercial cutting blades
• 18,500 ft/min blade-tip speed
• Adjustable discharge baffle
• Rubber side-discharge chute
• 1–5-inch cutting-height range
• Electromagnetic blade clutch
• Suspended operator platform
• Foldable platform converts to walk-behind operation
• 7.8-gallon fuel capacity
• Standard hour meter
• Flat-free front caster tires
• 18-inch rear drive tires
• Cast-iron spindle housings
• Maintenance-free spindle bearings
• 837-lb mower weight
• Commercial-use design
• 4-year / 750-hour warranty

Technical Specifications

Engine Configuration

Kawasaki® FS541V

The exact Toro 74534 configuration uses:

Engine Model: Kawasaki FS541V
Displacement: 603cc
Rated Output: 15 HP
Engine Type: 4-Cycle
Starting System: Electric
Rated Engine Speed: 3600 ±100 RPM

Important Engine Naming Note

The 541 in FS541V is part of Kawasaki’s engine model designation.

It does not mean that the engine displacement is 541cc.

For product pages, structured data and Google Merchant Center, use:

603cc

as the engine displacement.

Drive Configuration

Commercial Hydrostatic Drive

The GrandStand 74534 uses separate hydraulic drive components consisting of:

Twin 10cc/rev Pumps

paired with:

Independent Wheel Motors

The system allows the two rear wheels to be controlled independently through the twin steering levers.

Maximum Forward Speed

Up to 8 MPH / 12.8 km/h

Stand-On / Walk-Behind Configuration

Foldable Operator Platform

The GrandStand’s operator platform can be:

Lowered for Stand-On Operation

or:

Folded Up for Walk-Behind Operation

This allows the same mower to adapt to different working areas without requiring a separate walk-behind machine.

The suspended platform also helps isolate the operator from bumps and vibration encountered during commercial mowing.

Cutting Deck Configuration

36-Inch TURBO FORCE®

Cutting Width: 36 in. / 91 cm
Deck Material: 7-Gauge High-Strength Steel
Deck Style: Side Discharge
Deck Depth: Approx. 5 in.
Front Protection: Reinforced Bull-Nose Bumper

Toro’s TURBO FORCE deck is designed around a commercial reinforced steel structure and adjustable discharge airflow.

Blade Configuration

The 36-inch deck uses:

3 Heat-Treated Steel Blades

Blade Thickness

0.204 in. / approx. 5 mm

Blade Tip Speed

18,500 ft/min / 5,638 m/min

Cutting Height Configuration

The deck provides cutting heights from:

1.0 in.

to:

5.0 in.

with adjustments in approximately:

1/4-Inch Increments

PTO / Blade Engagement

The cutting system uses an:

Electromagnetic Clutch

for blade engagement.

Discharge Configuration

The standard mower configuration uses:

Side Discharge

with a:

Rubber Discharge Chute

and:

Adjustable Discharge Baffle

The adjustable baffle helps manage airflow and clipping discharge according to turf and mowing conditions.

Fuel Configuration

7.8-Gallon Tank

Fuel Capacity: 7.8 U.S. gal.

Equivalent to approximately:

29.5 Liters

The relatively large tank is intended to reduce refueling interruptions during commercial mowing.

Steering Configuration

The GrandStand uses:

Twin-Lever Steering Controls

Each control influences the corresponding drive wheel through the hydrostatic drive system.

Operator Platform Configuration

The platform incorporates:

• Fold-up design
• Suspension
• Standing operator position
• Conversion to walk-behind operation
• Open visibility toward the deck and surrounding property

Tire Configuration

Rear Drive Tires

18 × 8.5-8

Front Caster Tires

11 × 4-5

Flat-Free Semi-Pneumatic

The flat-free caster design reduces routine tire-pressure maintenance at the front of the machine.

Spindle Configuration

The deck uses large:

9.375-Inch Diameter Cast-Iron Spindle Housings

with:

Maintenance-Free Spindle Bearings

Hydraulic Configuration

Toro specifies:

Premium Synthetic Hydraulic Fluid

for the mower’s commercial hydrostatic system.

The exact fluid and service intervals should follow the operator/service manual applicable to the machine’s serial range.

Electrical Configuration

Battery

12V / 300 CCA

Starting

Electric Start

Hour Meter

Standard

The hour meter allows operating hours to be tracked for commercial maintenance scheduling.

Product Weight

837 lb.

Toro’s current exact-model specification lists:

837 lb. / 379.7 kg

for Model 74534.

What’s Included

Standard Model 74534 configuration includes:

• 1 × Toro GrandStand 36″ Commercial Mower
• Kawasaki FS541V 603cc engine
• 36-inch TURBO FORCE deck
• Three cutting blades
• Twin hydraulic pumps and wheel motors
• Foldable suspended operator platform
• Twin steering controls
• Standard hour meter
• Side-discharge chute
• Adjustable discharge baffle
• 12V starting system
• Factory safety controls and guards
• Product documentation

Compatible Accessories – Not Included Unless Bundled

Toro lists compatible accessories for the 36-inch GrandStand platform including:

• 36-inch Recycler® kit
• Commercial striping kit
• Operator-controlled discharge chute kit
• 3-bushel soft bagger
• Light kit
• Weight kit
• Trash bag kit
• Replacement blade kits
• Maintenance filter/belt/blade kits

These accessories should not be advertised as included unless they are specifically part of your retail package.

Warranty Information

Toro’s current product page lists:

4-Year / 750-Hour Manufacturer Warranty
