Product Description

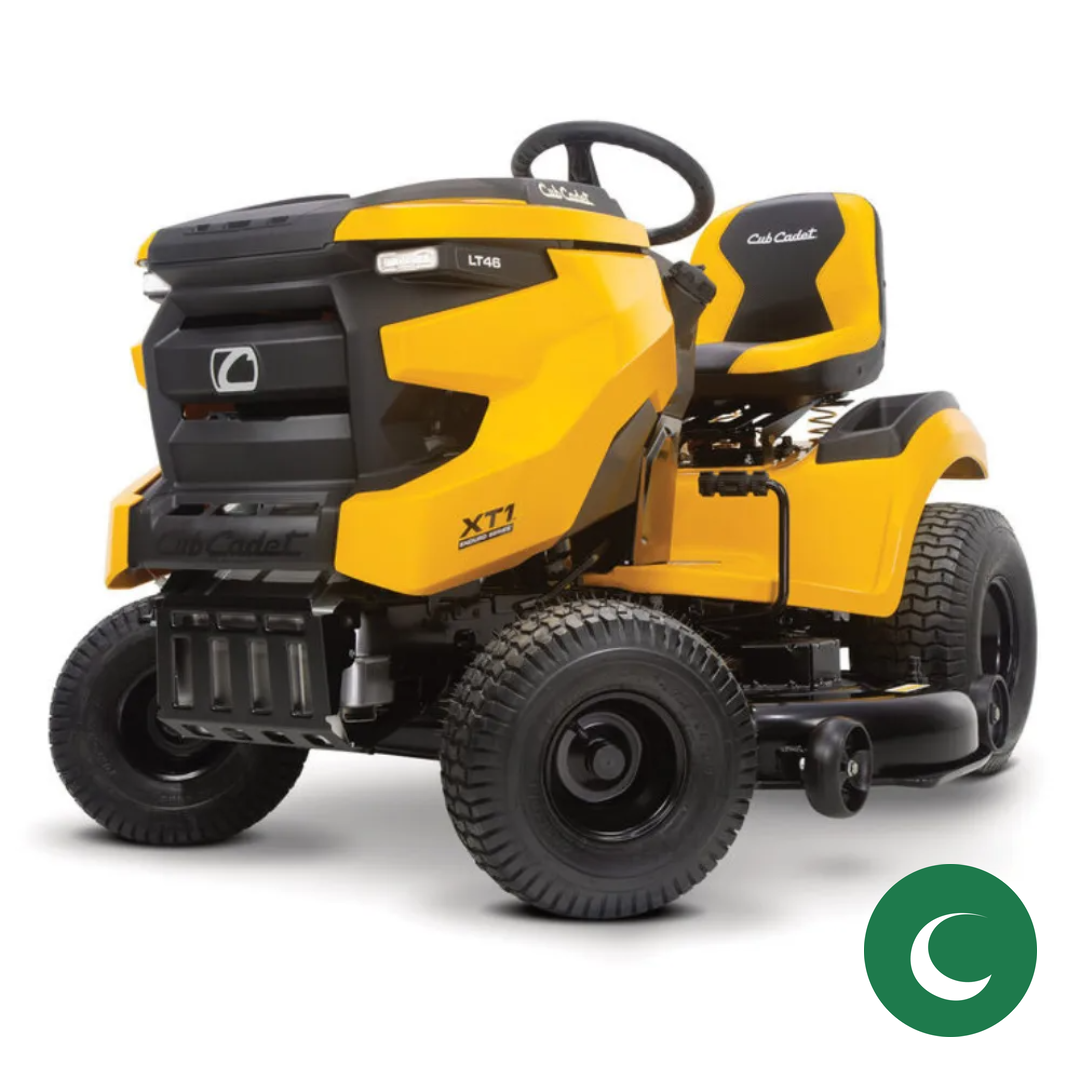

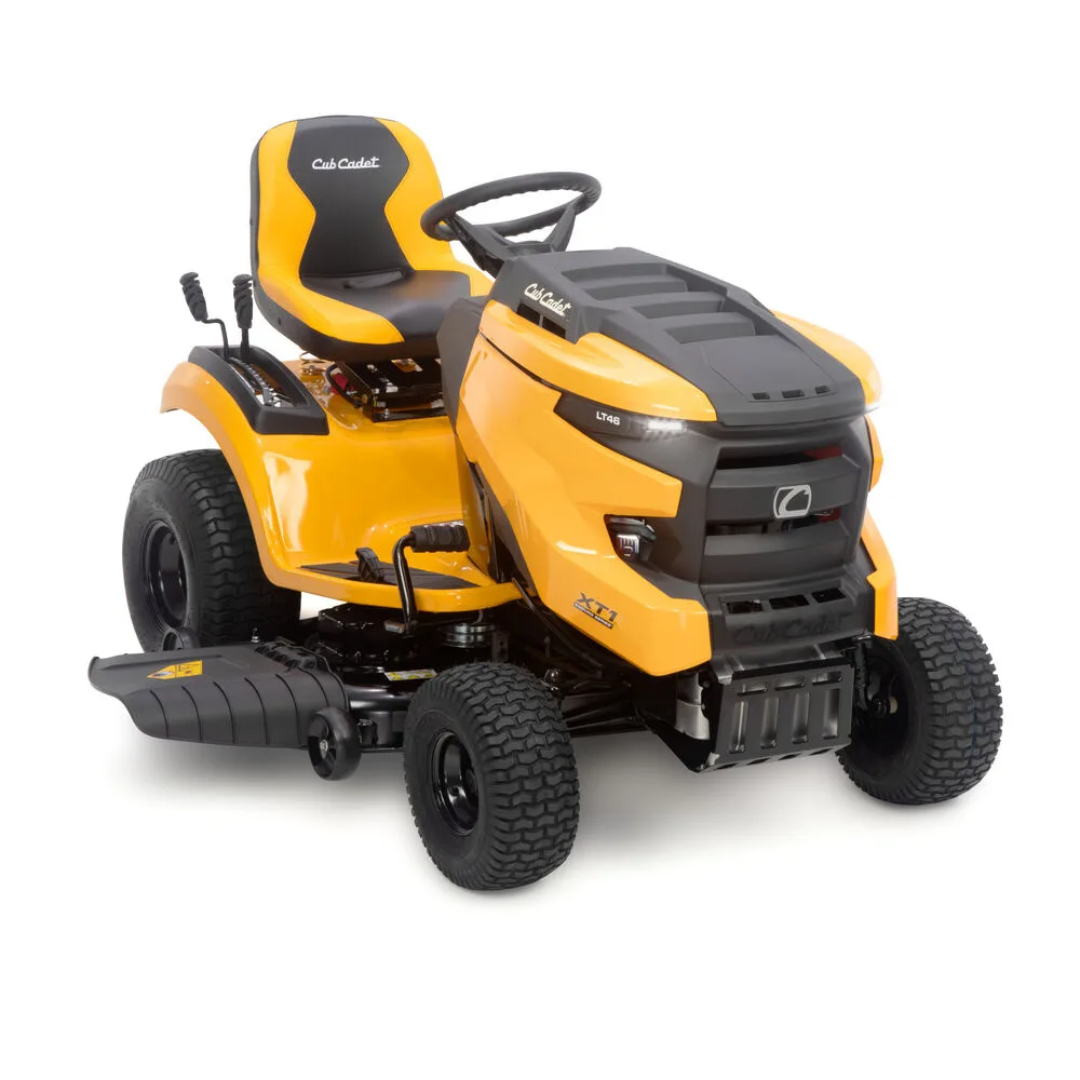

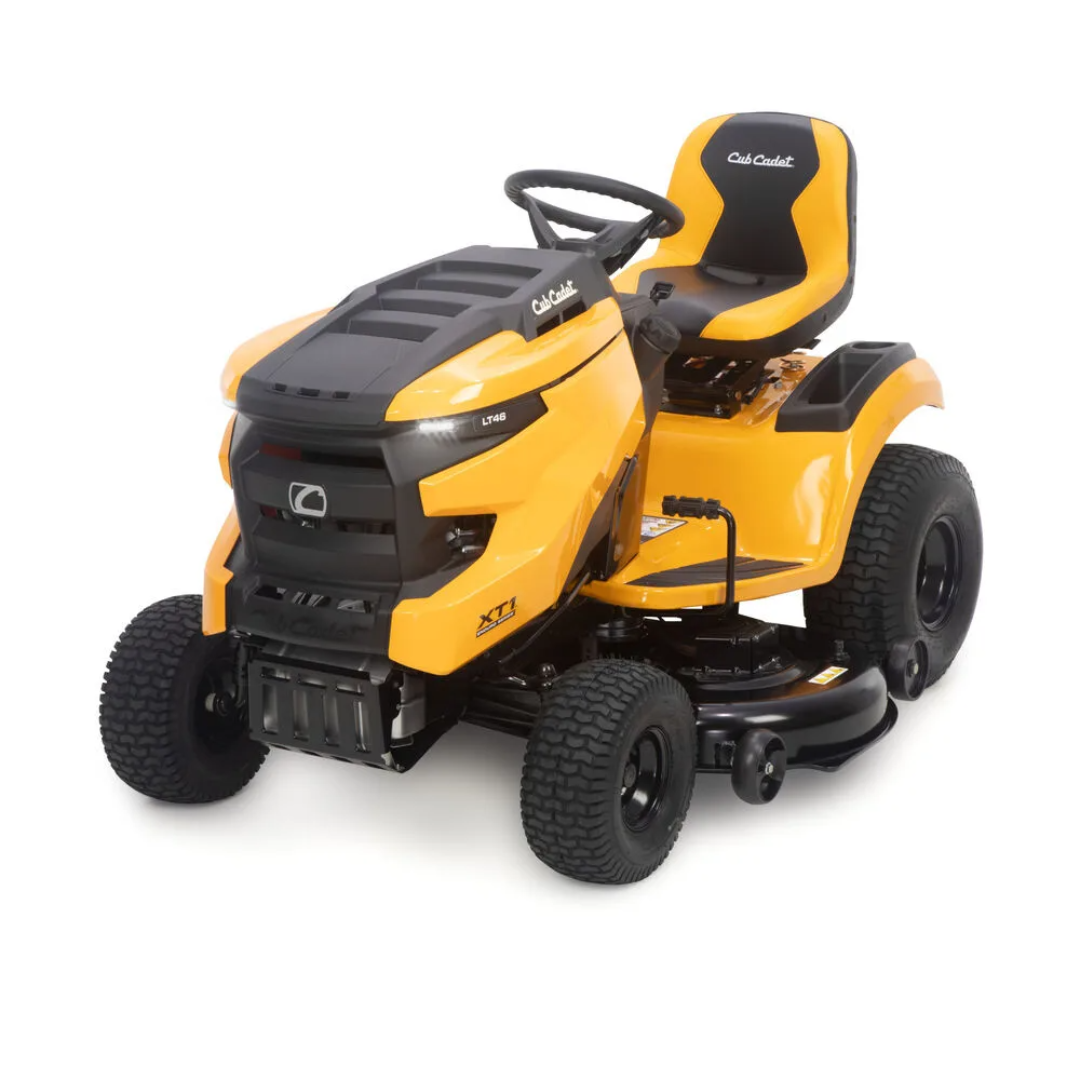

The Cub Cadet XT1 LT42 IntelliPOWER® Riding Lawn Mower combines a compact 42-inch cutting deck, foot-controlled hydrostatic transmission, and Cub Cadet’s electronically governed 547cc IntelliPOWER engine in a versatile residential lawn-tractor platform.

Power comes from a Cub Cadet AX90H0 547cc single-cylinder gasoline engine. Rather than relying only on a traditional mechanical governor, this engine incorporates IntelliPOWER® technology with an electronic governor designed to maintain more consistent engine output as mowing load changes. This can help the engine respond when encountering heavier or denser grass.

The engine uses full-pressure lubrication, includes an oil filter, and is paired with a regulated 15-amp charging system. Fuel is supplied through a carburetor, while Choke-a-matic operation simplifies normal starting. The mower carries a 3.0-gallon fuel tank.

Power is transferred to the rear wheels through a Tuff Torq® TL-200 hydrostatic transmission. Instead of manually selecting gears, ground speed is controlled with a foot pedal. Maximum published travel speed is approximately 5.5 MPH forward and 3 MPH in reverse.

The mowing system centers around a 42-inch stamped deck constructed from 13-gauge steel. Two cutting blades provide the full 42-inch cut, while the deck can be positioned through 12 cutting-height settings between 1 and 4 inches. Two gauge wheels help reduce scalping on changes in lawn contour.

A standard deck-wash connection provides a convenient point for attaching a garden hose when cleaning grass buildup from beneath the mower deck according to the manufacturer’s maintenance procedures.

The XT1 chassis incorporates a robotically welded frame, cast-iron front pivot bar, and 16-inch turning radius. This steering geometry gives the mower tighter maneuverability around landscaping, trees, and other lawn features than many conventional lawn tractors.

Operator comfort is supported by an adjustable 15-inch cut-and-sew high-back seat, rubber floor mats, cruise control, cup holder, and dual LED headlights. The current XT1 LT42 IntelliPOWER also includes a factory rear tow hitch for compatible lawn and garden accessories.

Key Features

• Current Cub Cadet XT1 LT42 IntelliPOWER
• Exact Model 13A6A9TS010
• 547cc Cub Cadet single-cylinder engine
• AX90H0 engine model
• IntelliPOWER electronic governor technology
• Electric key start
• Full-pressure engine lubrication
• Replaceable oil filter
• 15-amp regulated charging system
• 3-gallon fuel tank
• Tuff Torq TL-200 hydrostatic transmission
• Foot-pedal drive control
• Up to 5.5 MPH forward speed
• Up to 3 MPH reverse speed
• 42-inch cutting deck
• Stamped 13-gauge steel construction
• Twin-blade mowing system
• 1–4-inch cutting-height range
• 12 deck positions
• Two anti-scalp gauge wheels
• Deck-wash system
• 16-inch turning radius
• Cast-iron front pivot bar
• Robotically welded frame
• 15-inch high-back seat
• Cruise control
• Dual LED headlights
• Rubber floor mats
• Cup holder
• Rear tow hitch
• 3-year unlimited-hour residential warranty
• 5-year unlimited-hour frame/front-axle coverage

Technical Specifications

Engine Configuration

547cc Cub Cadet IntelliPOWER®

The exact current XT1 LT42 IntelliPOWER uses:

Engine Brand: Cub Cadet
Engine Model: AX90H0
Displacement: 547cc
Cylinders: Single
Governor: Electronic
Starting: Electric
Fuel Delivery: Carburetor

The key distinction is IntelliPOWER technology, which uses an electronic governor designed to respond to changing engine loads and maintain consistent mowing performance.

Engine Lubrication

Fully Pressurized

Engine Oil Capacity

1.8 U.S. qt. / 1.70 L

Oil Filter

Yes

Charging System

15 Amp Regulated

IntelliPOWER® Configuration

IntelliPOWER is not a separate electric motor or hybrid system.

It is part of the gasoline engine’s electronic-governor system.

Cub Cadet describes the technology as designed to deliver steady power under changing mowing loads, including thicker or wetter grass conditions.

For accurate ecommerce copy, use:

547cc Cub Cadet engine with IntelliPOWER electronic-governor technology

rather than inventing an unsupported horsepower value.

Important Horsepower Note

Cub Cadet’s current official page for exact Model 13A6A9TS010 identifies the engine by:

547cc displacement

rather than publishing a current horsepower figure.

For this reason, the safest product title and specification should use:

547cc IntelliPOWER Engine

Do not automatically advertise it as an 18 HP, 19 HP, 19.5 HP, or 20 HP mower based on other XT1 LT42 generations.

Transmission Configuration

Tuff Torq® TL-200 Hydrostatic

The XT1 LT42 IntelliPOWER uses a:

Tuff Torq TL-200 Foot-Controlled Hydrostatic Transmission

No manual gear shifting is required during normal travel.

Forward Speed

Up to 5.5 MPH

Reverse Speed

Up to 3 MPH

Transmission Housing

Aluminum

Rear Differential Lock

No

Cutting Deck Configuration

42-Inch Stamped Deck

Cutting Width: 42 in.
Construction: Stamped Steel
Steel Gauge: 13 Gauge
Blades: 2
Deck Engagement: Manual PTO

The deck’s twin-blade layout covers the full 42-inch mowing path.

Cutting Height Configuration

1–4 Inches

The mower provides:

12 Cutting Positions

across a:

1 to 4-Inch Cutting-Height Range

This allows lawn height to be adjusted for varying grass types and seasonal conditions.

Anti-Scalp Configuration

The deck incorporates:

2 Gauge Wheels

These help the deck move across changes in ground contour and reduce direct deck contact with uneven lawn surfaces.

Deck Wash Configuration

The mower includes a:

Deck-Wash Port

for connecting a compatible garden hose when cleaning the mower deck according to Cub Cadet’s recommended procedure.

Steering & Chassis Configuration

16-Inch Turning Radius

The XT1 LT42 uses Cub Cadet’s optimized steering layout with a published:

16-inch turning radius.

Frame

Robotically Welded

Front Pivot Bar

Cast Iron

Corrosion Protection

Yes

Tire Configuration

Front Tires

15 × 6-6

Rear Tires

20 × 8-8

Tread

Turf Saver

Fuel Configuration

Fuel Tank Capacity: 3.0 U.S. gal. / 11.36 L

Fuel Gauge: No

The mower does not include a dedicated fuel gauge according to Cub Cadet’s current specification table.

Battery Configuration

Battery Voltage: 12V
Battery Rating: 230 CCA
Battery Type: Lead Acid

The battery powers the electric starting and mower electrical systems.

Operator Comfort

The XT1 LT42 IntelliPOWER includes an:

Adjustable 15-Inch High-Back Cut-and-Sew Seat

with a slight incline and lever-operated adjustment.

Additional operator features include:

• Rubber floor mats
• Cruise control
• Cup holder
• Dual LED headlights
• Operator presence system

Armrests are not standard equipment on the current base configuration.

Lighting Configuration

Dual LED Headlights

The current XT1 LT42 IntelliPOWER includes:

Dual LED Headlights

as standard equipment.

Rear Hitch Configuration

A:

Rear Tow Hitch

is included as part of the current chassis specification.

It allows connection of compatible tow-behind lawn accessories within the mower’s approved limitations.

What’s Included

The standard mower configuration includes:

• 1 × Cub Cadet XT1 LT42 IntelliPOWER Riding Lawn Mower
• 547cc Cub Cadet IntelliPOWER engine
• 42-inch stamped twin-blade deck
• Tuff Torq TL-200 hydrostatic transmission
• 12V starting battery
• Adjustable 15-inch high-back seat
• Dual LED headlights
• Rear tow hitch
• Two deck gauge wheels
• Side-discharge hardware
• Factory-installed controls and safety systems

Optional Accessories – Not Included Unless Bundled

Cub Cadet currently lists compatible accessories separately, including:

• Xtreme® Mulching Kit for 42-inch decks
• 42/46-inch riding mower bagger
• FastAttach® front brush guard
• FastAttach rear cargo carrier
• Rear spreader
• Rear sprayer
• Sun shade
• Front bumper kit
• Hour meter kit
• All-season plow blade
• Snow blower attachment
• Tire chains
• Armrest kit

These are not standard base-mower contents unless specifically included in your store package.

Mulching Configuration

The standard mower is not supplied with the separate Xtreme mulching kit.

Cub Cadet currently identifies:

Xtreme® Mulching Kit for 42-Inch Cutting Decks

as an optional accessory.

Therefore, use:

Mulching: Optional with separately sold compatible kit

rather than claiming standard mulching equipment.

Bagger Configuration

A compatible:

42/46-Inch Riding Mower Bagger

is offered separately by Cub Cadet.

The base XT1 LT42 IntelliPOWER should therefore not be described as including a grass-collection bagger.

Ideal Applications

The XT1 LT42 IntelliPOWER is suited to maintained residential properties where a conventional riding lawn tractor is appropriate, including:

• Residential lawns
• Medium-size yards
• Properties with trees and landscaping
• Mostly maintained turf
• Areas requiring tighter tractor maneuverability
• Lawns where bagging or mulching accessories may later be added

Product Highlights

IntelliPOWER 547cc Engine

Electronic-governor technology helps the engine respond to changes in mowing load.

42-Inch Cutting Width

Twin-blade stamped deck provides a practical balance between mowing coverage and maneuverability.

Hydrostatic Drive

Foot-controlled Tuff Torq transmission eliminates manual gear changes during normal driving.

16-Inch Turning Radius

Designed for responsive steering around landscaping and lawn obstacles.

12 Cutting Positions

Provides a wide 1–4-inch grass-height adjustment range.

Heavy-Duty Front Structure

Cast-iron front pivot bar adds structural durability.

Warranty Information

The current exact model carries:

Residential Warranty

3 Years / Unlimited Hours

Frame Warranty

5 Years / Unlimited Hours

Front Axle Warranty

5 Years / Unlimited Hours

Deck Shell Warranty

3 Years / Unlimited Hours

Cub Cadet does not list a commercial warranty for this model. Coverage remains subject to the manufacturer’s full warranty terms and exclusions.

Recommended Ecommerce Wording

Cub Cadet 3-Year Unlimited-Hour Residential Limited Warranty, plus 5-Year Unlimited-Hour frame and front-axle limited coverage, subject to manufacturer terms and exclusions.
