Product Description

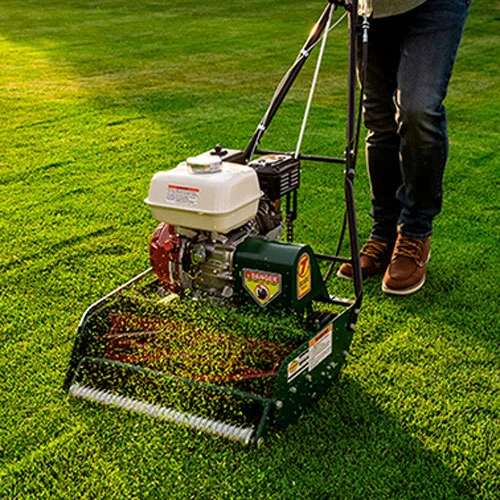

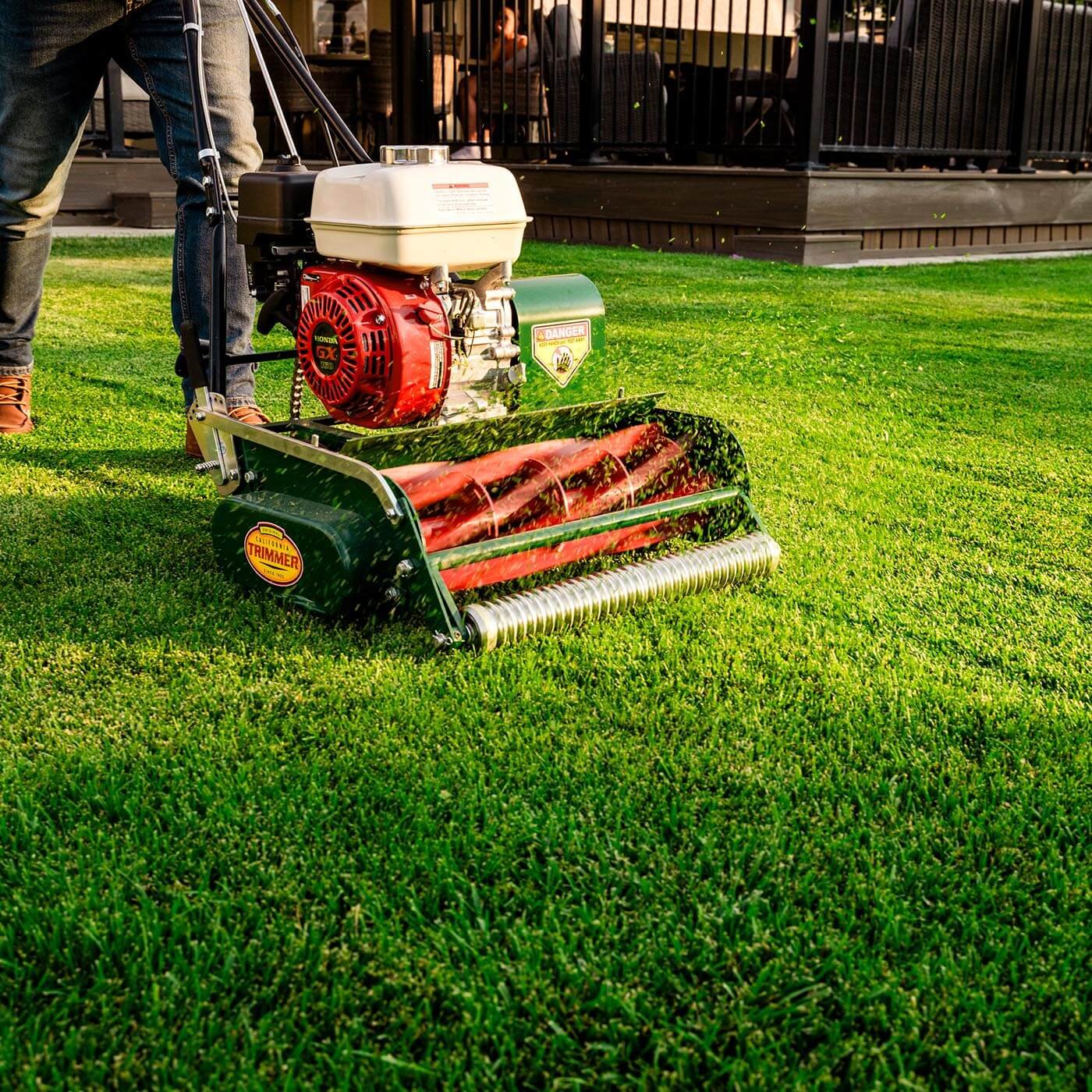

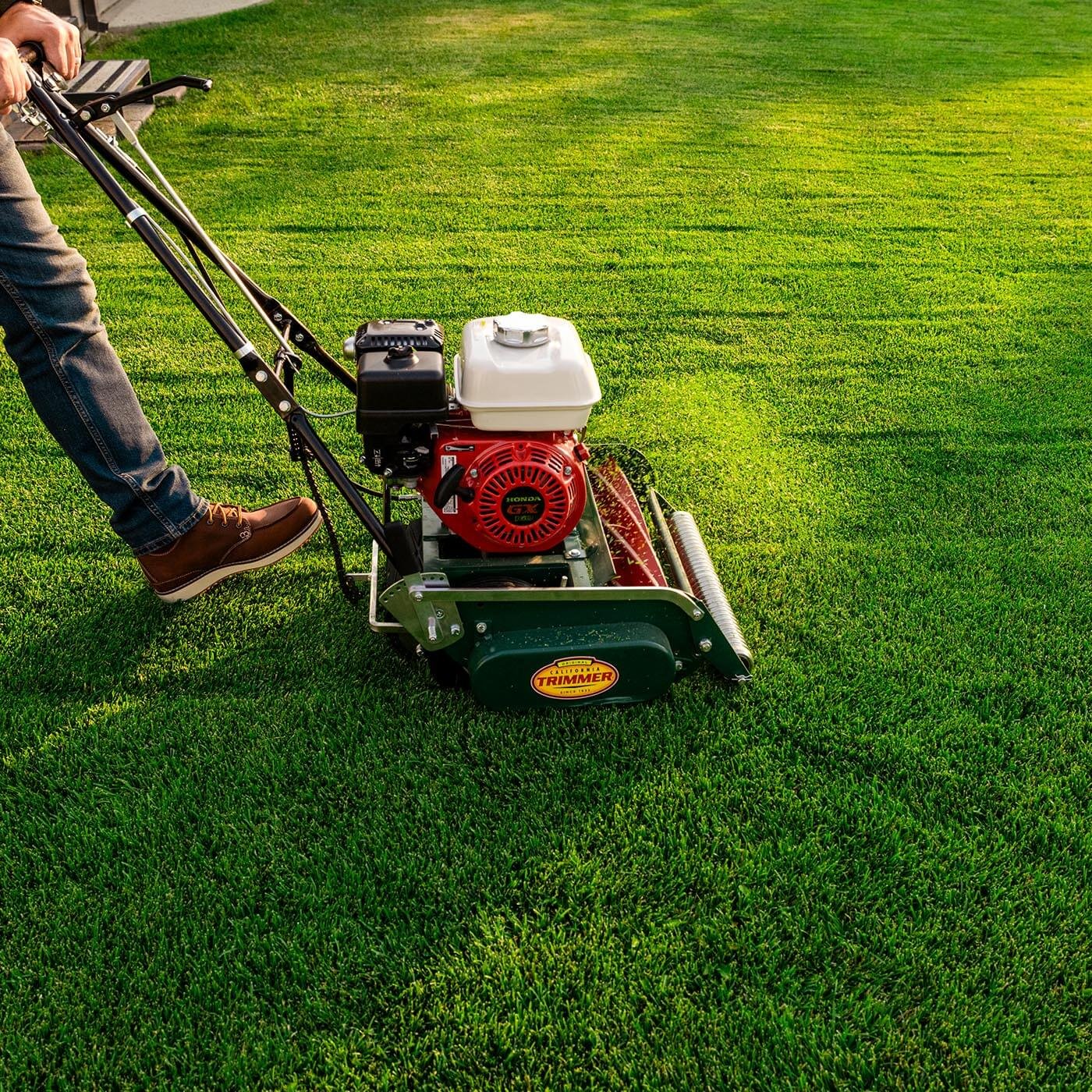

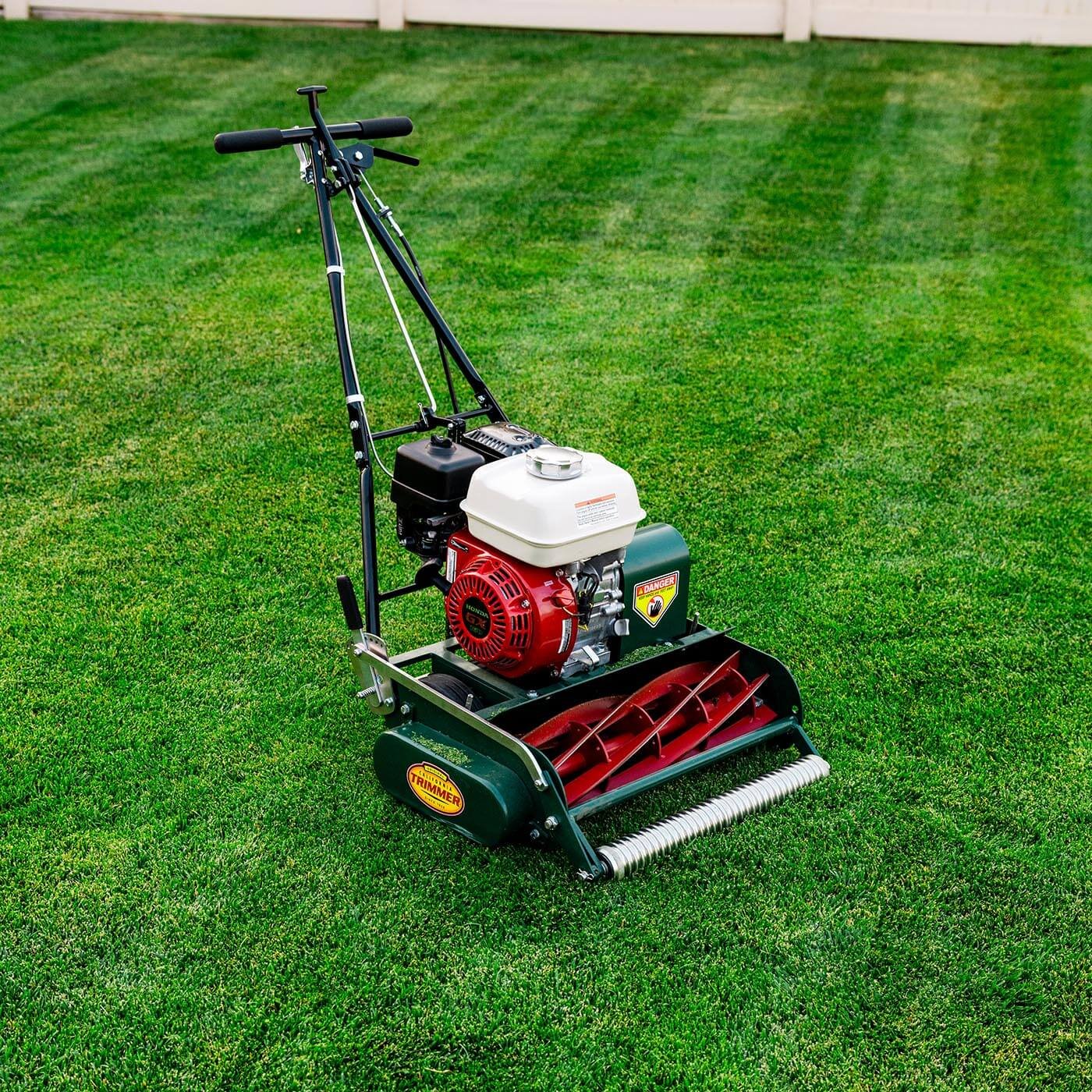

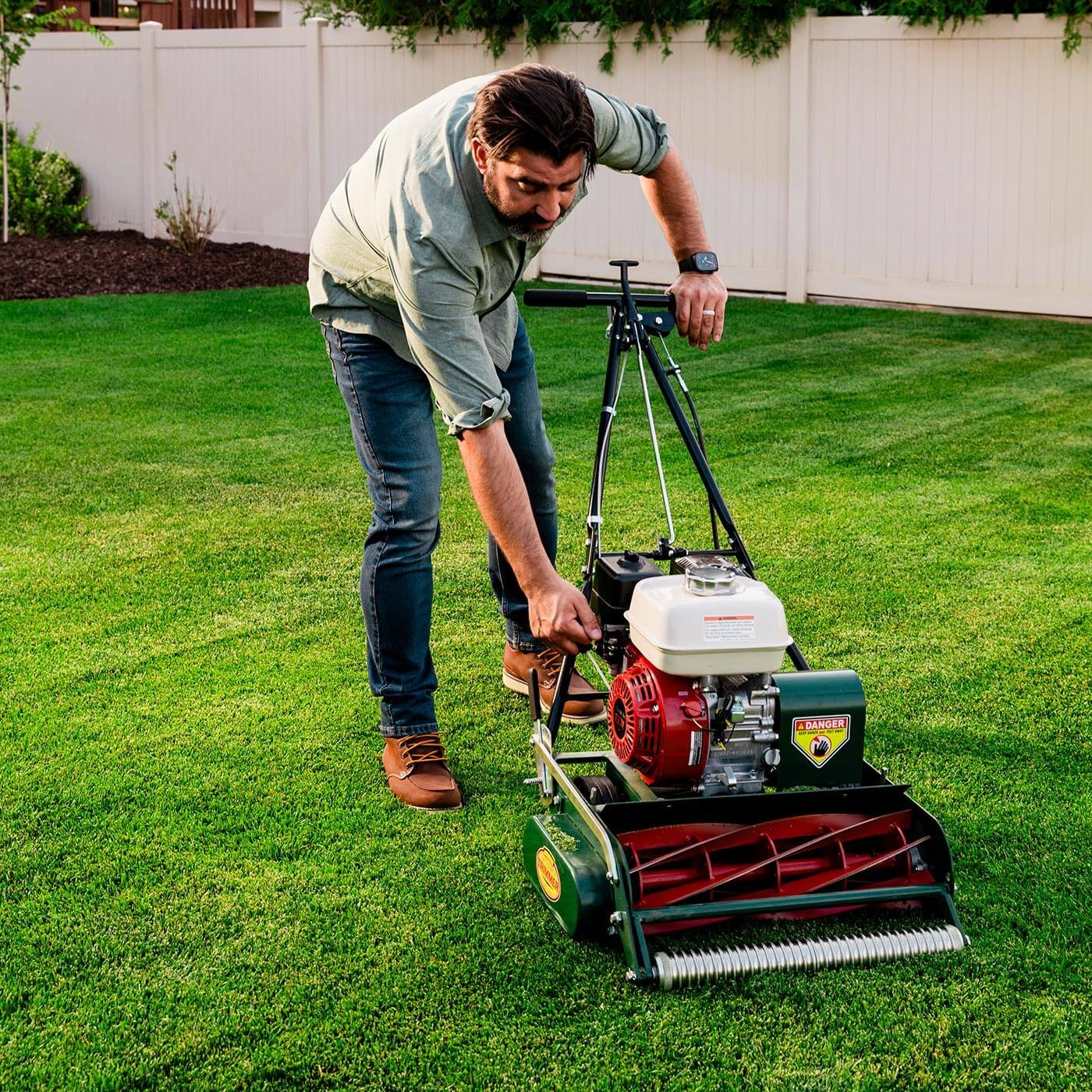

The California Trimmer Classic Standard 20-Inch Reel Lawn Mower is a gas-powered self-propelled mower engineered for precision cutting on closely maintained residential turf.

This configuration pairs the Classic chassis with a Honda GX160 Commercial 163cc OHV engine rated by California Trimmer at 4.8 HP. The GX160 is the largest Honda engine option currently offered on the Classic platform and provides power for both the reel-cutting system and the mower’s self-propelled rear roller drive.

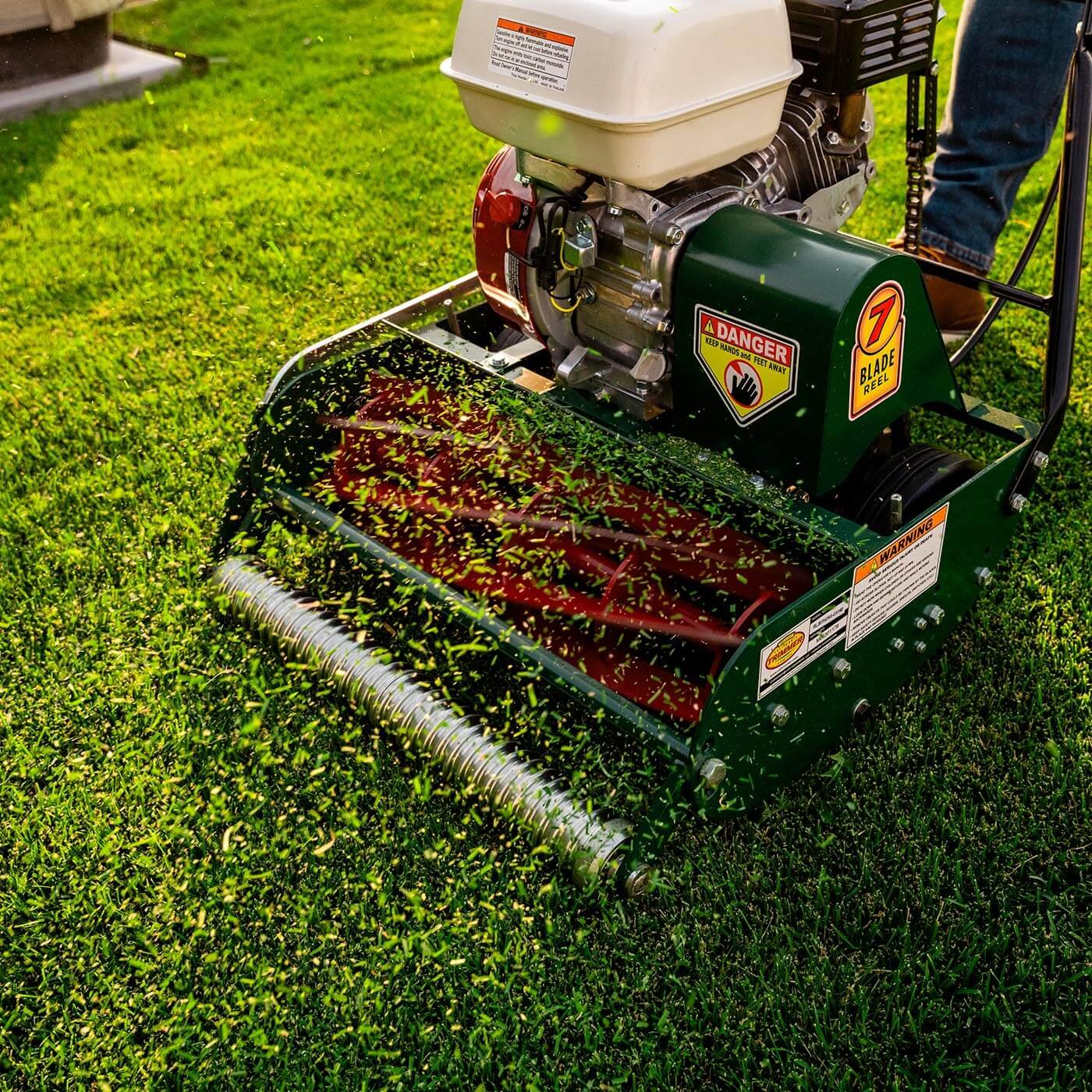

Unlike a conventional rotary mower that cuts grass with a horizontally spinning blade, the California Trimmer uses a rotating cylindrical reel working against a stationary bedknife. The reel and bedknife create a shearing action designed to produce a clean, precise cut on properly maintained turf.

The Standard version uses a 20-inch, 7-blade reel. California Trimmer specifically recommends the 7-blade setup for lower cutting heights, generally below approximately 1.25 inches, and identifies it as particularly suitable for finely maintained grasses such as Bermuda, Zoysia and bentgrass.

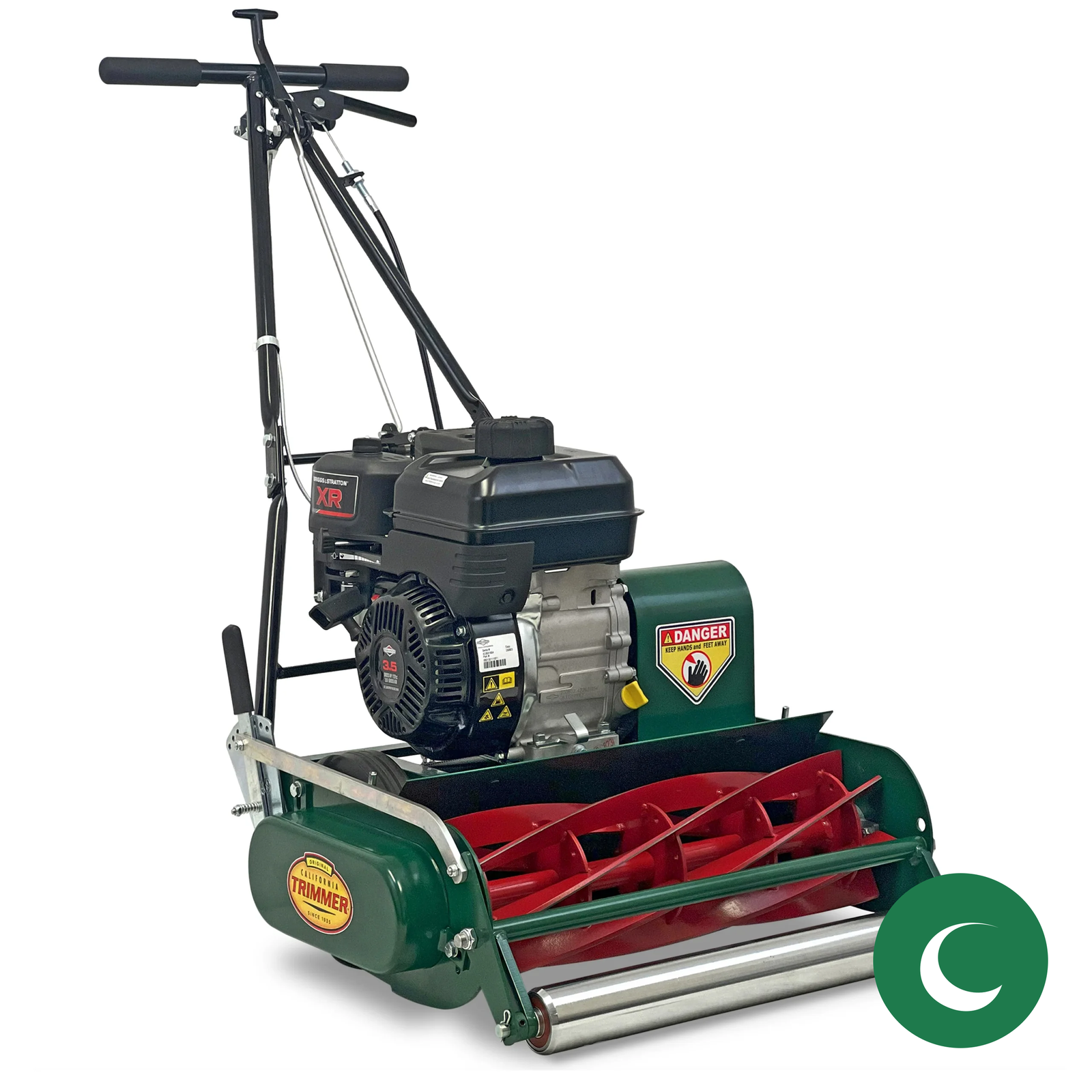

This exact mower is configured with a smooth front roller instead of caster wheels. The front roller supports the mower across the cutting path and helps maintain a consistent height of cut. California Trimmer recommends the smooth roller primarily for dry, firm, established turf and lower mowing heights.

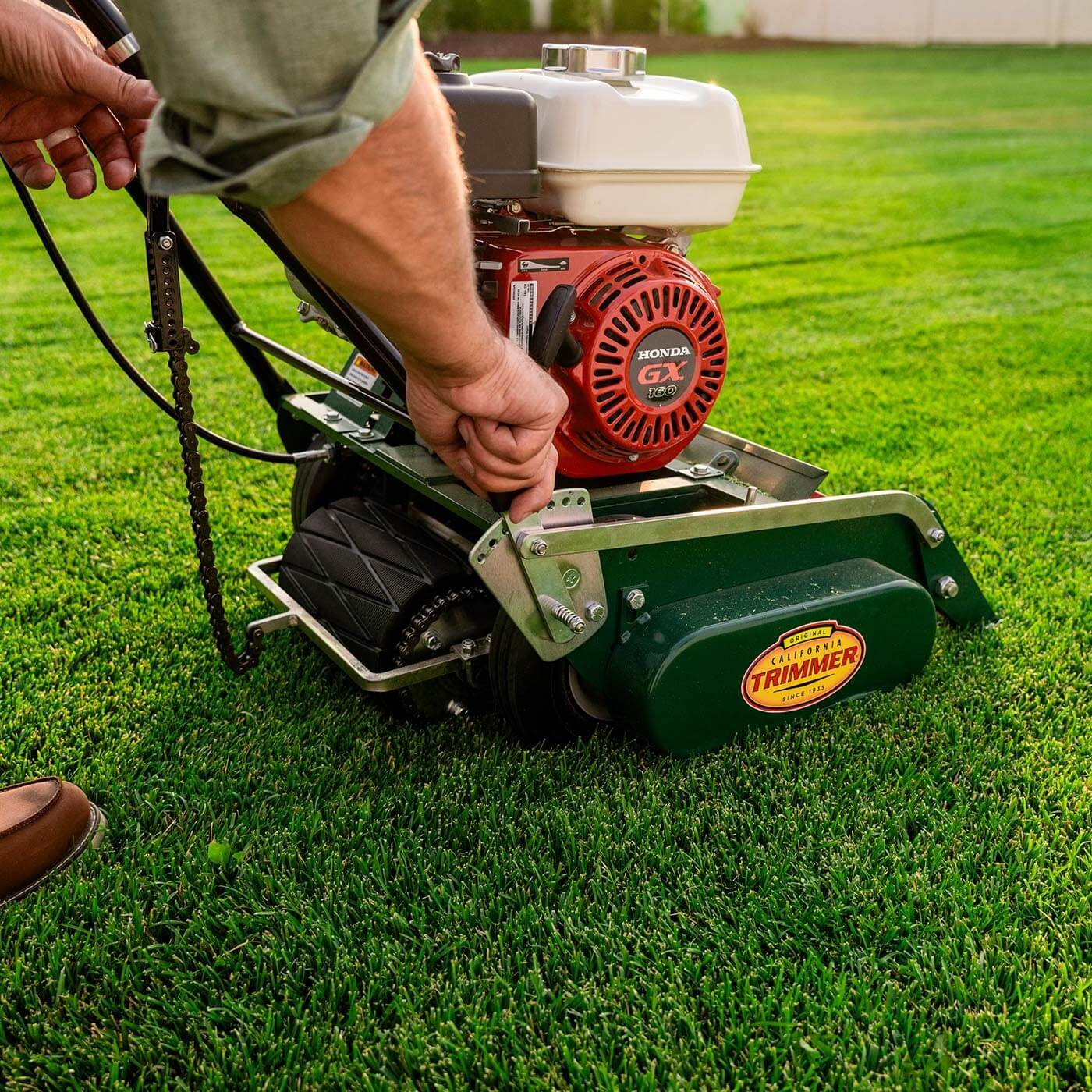

At the rear, a large 9-inch deep-tread drive roller provides propulsion and traction. The roller is ball-bearing supported and forms an important part of the mower’s self-propelled drive system.

Power transmission uses a heavy-duty combination of belt and chain components. California Trimmer specifies HD belt tension, three chains and an 11/16-inch steel drive shaft for the Classic drive system.

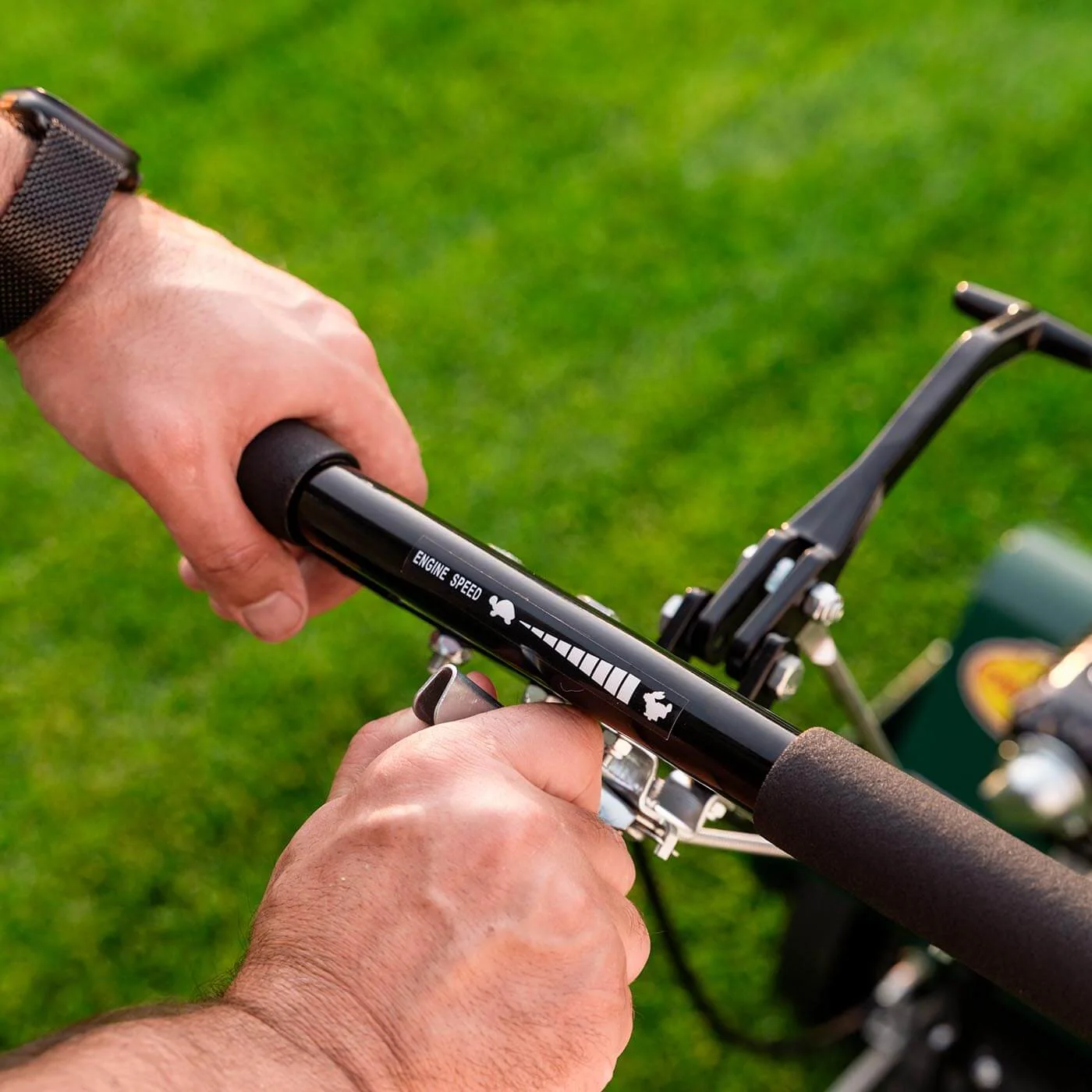

Operator control is provided through a convenient hand-lever clutch system, allowing engagement of the drive and mowing mechanism from the handle area.

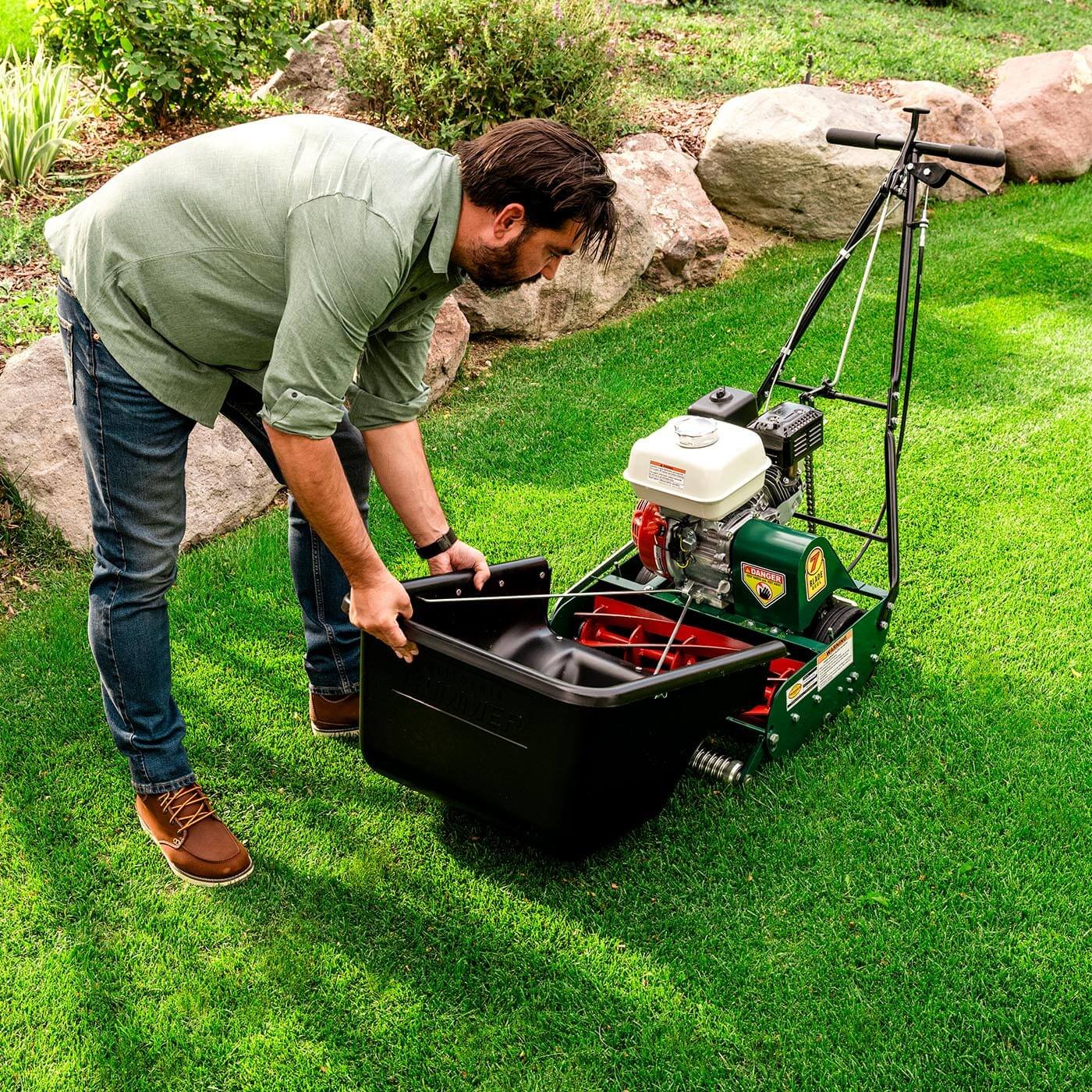

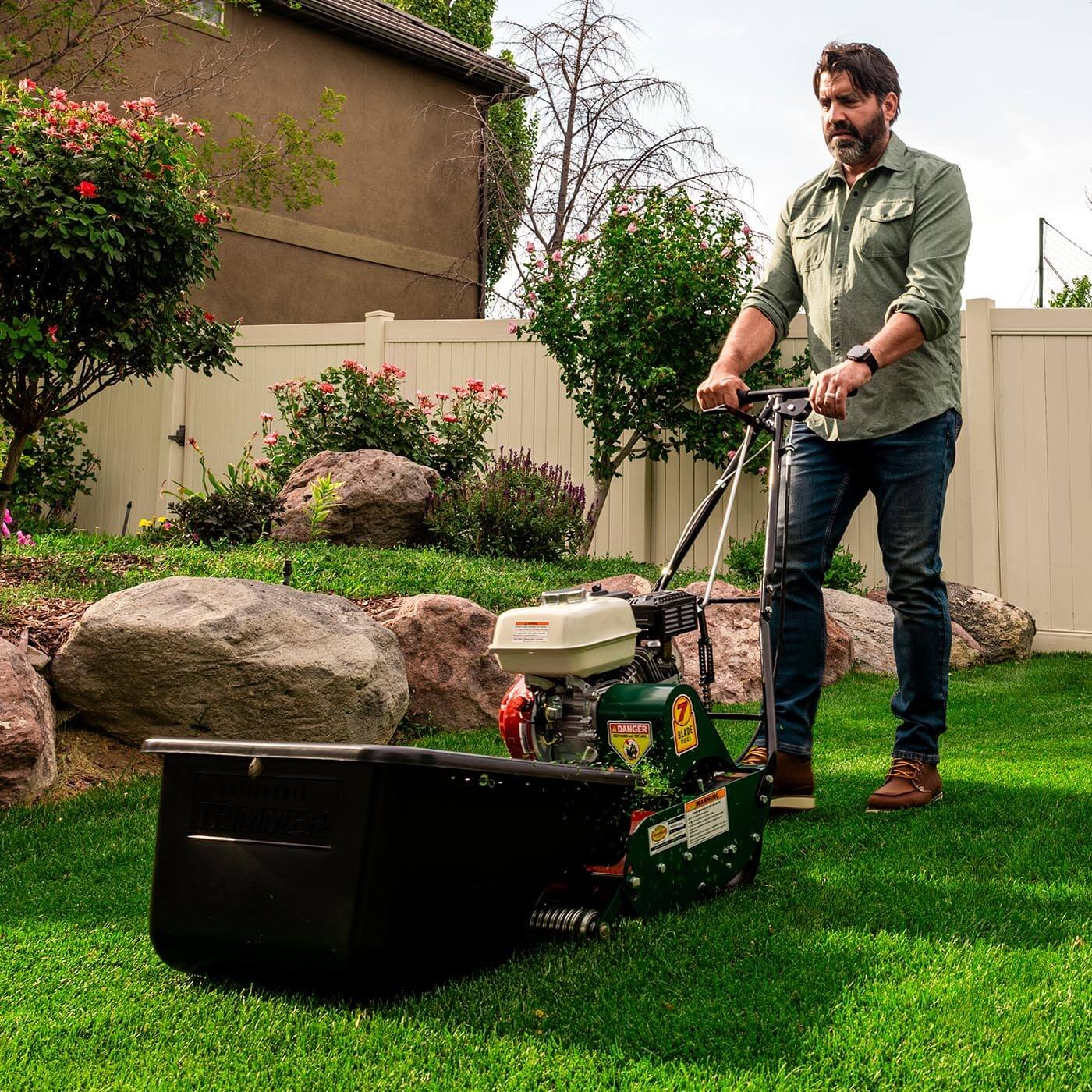

Grass clippings are directed forward into the included 2-bushel HDPE catcher, rather than being thrown backward toward the operator. The catcher mounts ahead of the cutting reel and is included with every current California Trimmer reel-mower configuration.

With its welded frame, replaceable bedknife, accessible reel adjustment, commercial Honda engine and roller-based drive system, this configuration is intended for homeowners seeking a closely maintained, reel-cut lawn appearance.

Key Features

• California Trimmer Classic Standard
• 20-inch cutting width
• Honda GX160 Commercial engine
• 163cc displacement
• 4.8 HP manufacturer rating
• OHV engine design
• Gas-powered operation
• Self-propelled drive
• 7-blade reel
• Precision reel-and-bedknife cutting action
• Smooth front roller
• 9-inch rear drive roller
• Ball-bearing-supported drive roller
• Heavy-duty belt and chain drive
• Three-chain drive configuration
• 11/16-inch steel drive shaft
• Hand-lever clutch engagement
• Solid welded frame
• Replaceable bedknife
• Top-access reel/bedknife adjustment
• Adjustable cutting height
• 2-bushel grass catcher included
• HDPE grass catcher
• Approx. 3 MPH walk speed
• 23.5-inch overall width
• 143–147 lb. dry-weight range

Technical Specifications

Current manufacturer specifications confirm the 20-inch width, Honda GX160 163cc/4.8 HP engine, seven-blade reel, 9-inch rear roller, 3 MPH speed and 2-bushel catcher for the Classic platform.

Engine Configuration

Honda GX160 Commercial

This selected configuration uses:

Engine: Honda GX160
Displacement: 163cc
Valve Design: OHV
Manufacturer-Published Power: 4.8 HP

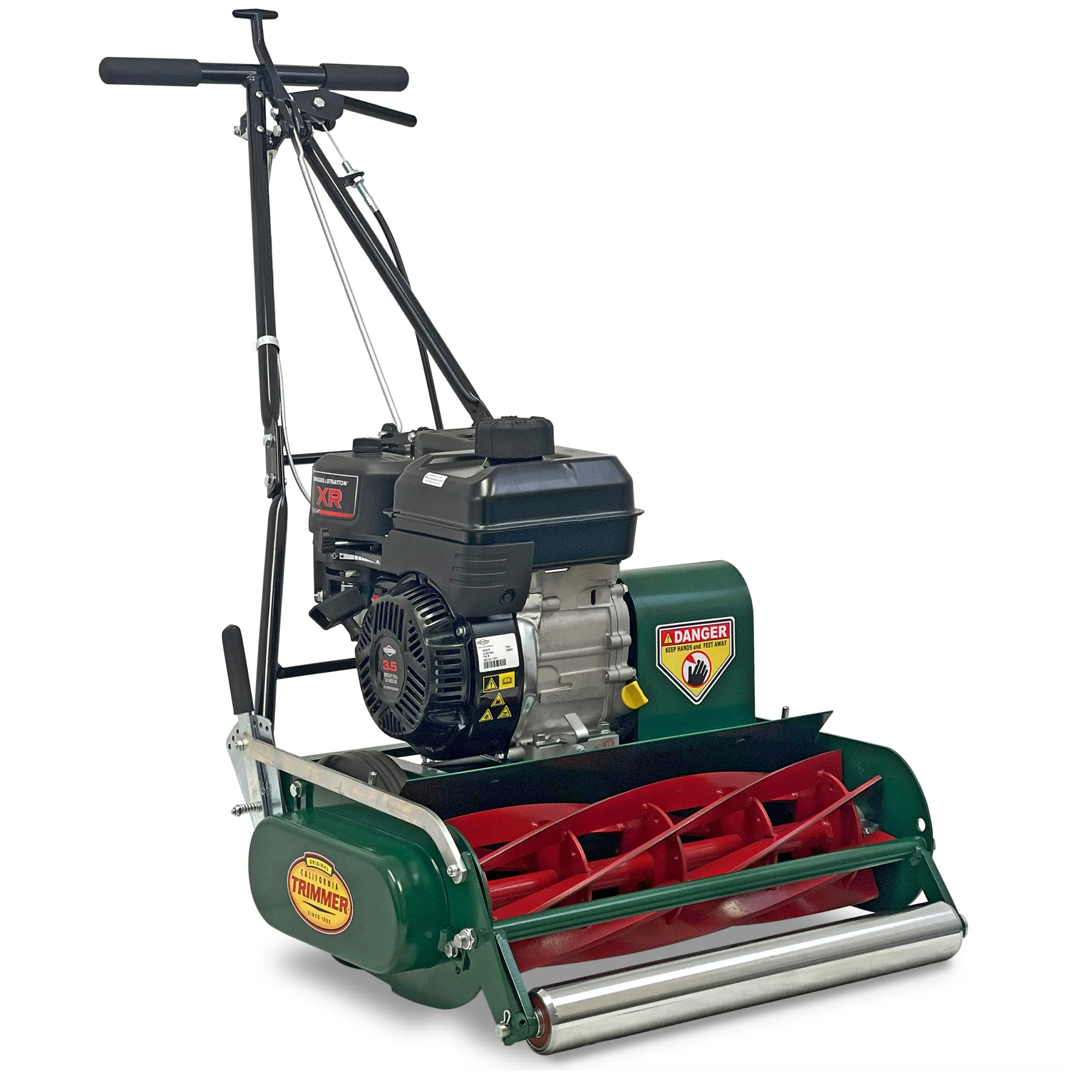

The Classic platform is also sold with smaller Honda GX120 and Briggs & Stratton XR550 engine configurations, but those specifications should not be mixed with this exact GX160 listing.

Cutting Configuration

20-Inch Precision Reel

Cutting Width: 20 in.

The reel rotates against a stationary bedknife, producing a scissor-like cutting action rather than the impact-style cutting action of a rotary mower.

7-Blade Reel Configuration

This listing uses:

7-Blade Reel

California Trimmer recommends the seven-blade reel primarily for:

• Lower mowing heights
• Fine-bladed turf
• Bermuda grass
• Zoysia grass
• Bentgrass
• Frequently maintained lawns
• Smoother low-cut finishes

The Classic Standard is 7-blade only in the manufacturer’s current configuration system. The 5-blade option applies to the High-Cut version rather than this Standard mower.

Standard Cutting-Height Configuration

The Classic Standard version is intended for lawns maintained at approximately:

1.25 inches and below

California Trimmer’s current product specification lists Standard-model height adjustment as approximately:

7/16 in. to 1-3/4 in.

depending on the precise Classic configuration and adjustment setup.

The manufacturer separately recommends the High-Cut version when maintaining grass above approximately 1.25 inches and up to 2.25 inches.

Smooth Front Roller Configuration

This exact configuration uses a:

Smooth Front Roller

California Trimmer identifies the smooth roller as particularly suitable for:

• Dry turf
• Firm turf
• Well-established lawns
• Routine mowing
• Maintained level areas
• Lower mowing heights

The front roller’s main function is maintaining a consistent height of cut as the mower moves across the lawn.

Rear Roller Drive Configuration

9-Inch Deep-Tread Roller

The self-propel system uses a:

Large 9-Inch Deep-Tread Rear Drive Roller

with:

Ball-Bearing Support

The rear roller provides traction and propels the mower forward.

Drive Configuration

The Classic uses a heavy-duty drive system consisting of:

Heavy-Duty Belt Tension

3 Chains

11/16-Inch Steel Drive Shaft

Walking Speed

Approx. 3.0 MPH / 4.8 km/h

Clutch Configuration

The mower includes:

Convenient Hand-Lever Clutch Engagement

allowing the operator to control mower engagement from the handle.

Frame Configuration

The mower uses a:

Solid Welded Frame

designed to support the engine, reel system and rear drive roller as a rigid assembly.

Bedknife Configuration

The Classic reel mower uses a:

Replaceable Bedknife

and provides:

Top-Side Reel / Bedknife Adjustment Access

This allows the reel-to-bedknife relationship to be adjusted during normal mower servicing.

Grass Catcher Configuration

Every current California Trimmer reel mower includes a catcher.

For the Classic platform:

Capacity: 2 Bushels

Material: HDPE – High-Density Polyethylene

Clippings are directed forward into the catcher.

Dimensions & Weight

Cutting Width

20 in.

Overall Width

23.5 in.

Dry Weight

Approximately 143–147 lb.

Weight varies slightly according to engine and front-wheel/roller configuration.

What’s Included

This selected configuration includes:

• 1 × California Trimmer Classic Standard 20″ Reel Mower
• Honda GX160 163cc engine

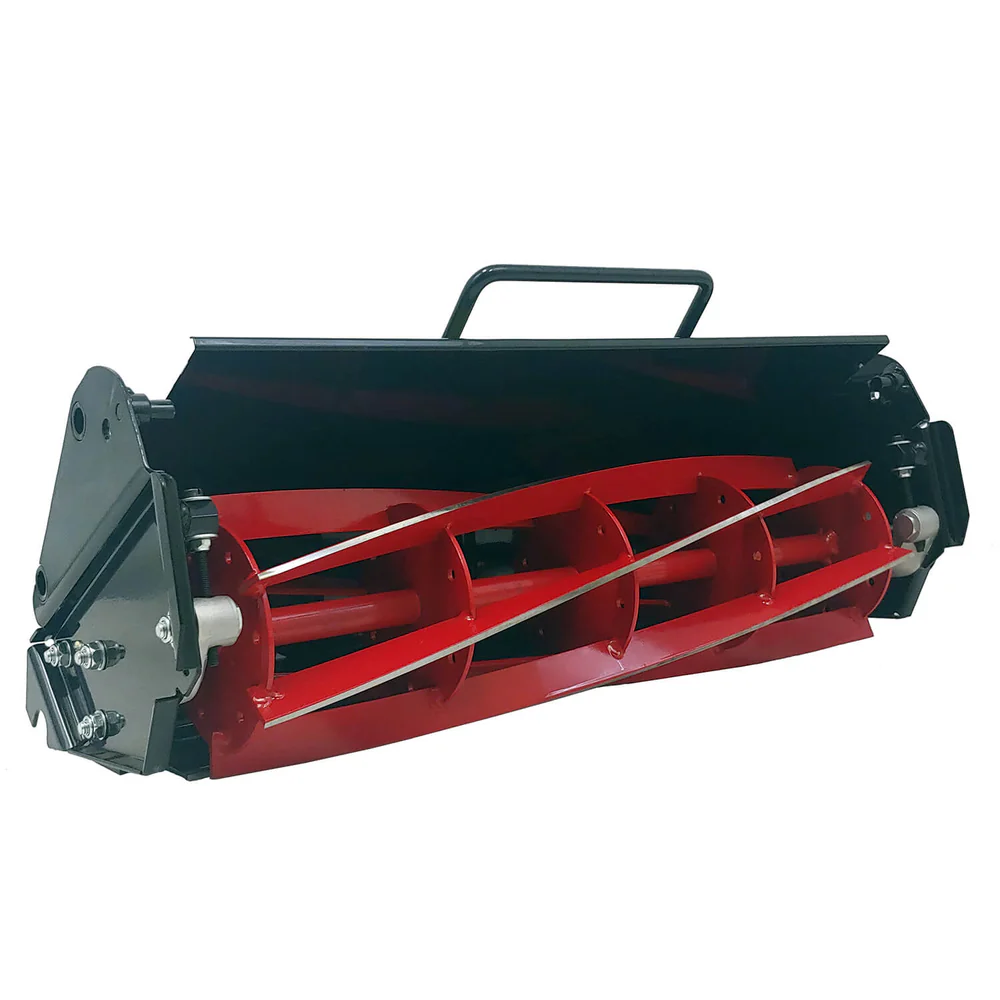

• 7-blade reel assembly
• Smooth front roller
• 9-inch rear drive roller
• Reel bedknife
• Self-propelled drive system
• 2-bushel HDPE grass catcher
• Factory controls and guards
• Product documentation

Optional Accessories / Alternate Configurations

California Trimmer offers several separately selectable or separately sold components, including:

• Grooved front roller
• Caster-wheel assembly
• Handle extension
• Backlapping kit
• Reel blade shield extension
• Replacement reel/bedknife components

These should not be advertised as included unless your exact package contains them.

Warranty Information

California Trimmer 2-Year Residential Chassis/Frame Warranty. Honda engine warranty is provided separately by Honda and is subject to Honda’s applicable warranty terms.
